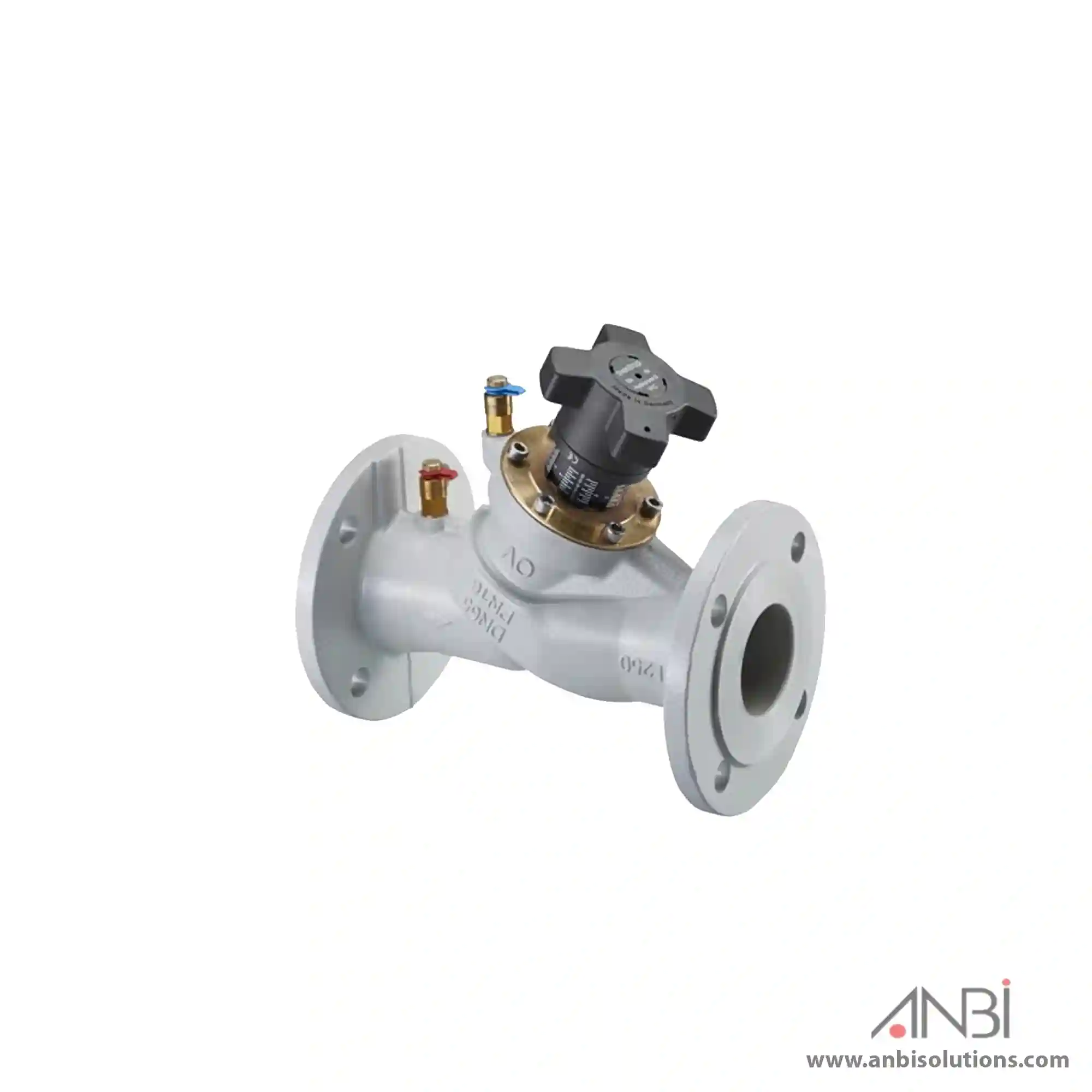

OVENTROP Double Regulating Hydrocontrol VFC Cast Iron Valve PN 16

OVENTROP Oblique pattern model, with secured, infinitely adjustable presetting controllable at any time with the help of the flow limiting device.Valve body made of cast iron (GG 25 DIN 1691), bonnet and disc made of bronze, stem made of brass resistant to dezincification (DZR), a disc with PTFE seal, maintenance-free stem seal due to double EPDM O-ring. Presetting lead-sealable.

With mounted accessories set no. 2 = 2 pressure test points 1/4”

All functioning components in one plane, pressure test point and fill and drain ball valve are interchangeable.

Both ports flange according to DIN EN 1092-2. Lengths according to DIN EN 558-1, basic series 1.

Material: Cast iron GG25

max. operating pressure: 16 bar
max. operating temperature: 150 °C

Item no.: 1062651 EAN: 4026755126129
Item no.: 1062652 EAN: 4026755126136
Item no.: 1062653 EAN: 4026755126143
Item no.: 1062654 EAN: 4026755126150
Item no.: 1062655 EAN: 4026755126167
Manufacturer: Oventrop GmbH & Co. KG
Subject to technical modifications without notice.
