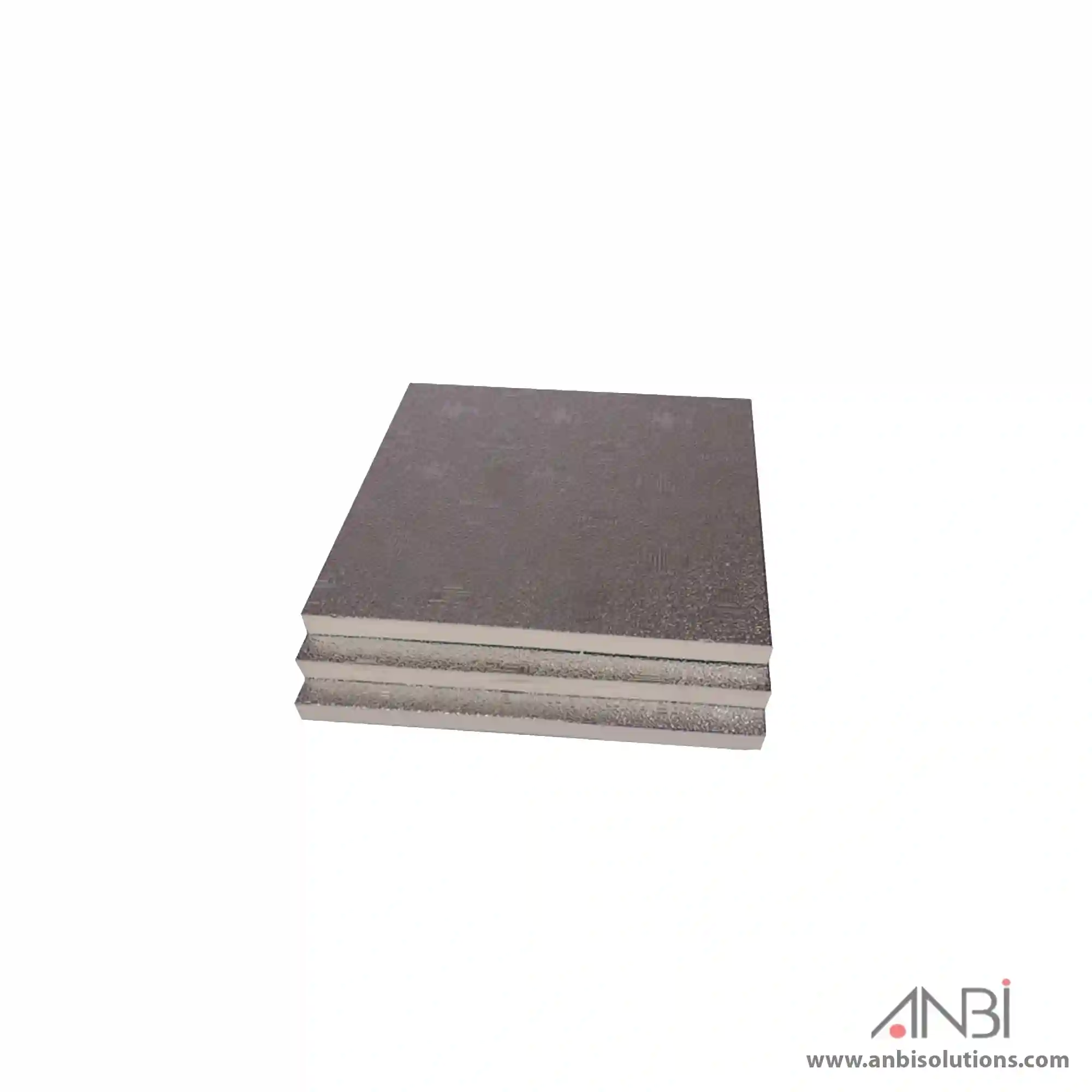

PIR Duct Pre-Insulated Polyisocyanurate Duct Panels 20mm Thickness

Density: 48.2 kg/m3
Thermal Conductivity: 0.020 w/m*k
Aluminum Foil: 80/80 Micron (One Side of Aluminum can be provided with 200 microns as well)
Aluminum Foil Finishing: Embossed on Both Sides

Pre Insulated Panels are available in the below-mentioned thickness to suit different performance specifications:

Polyisocyanurate Ducts are made of closed-cell rigid Polyisocyanurate and Polyurethane insulations.

Pre Insulated Duct panels (HVAC) are alternatives to traditional ducts. ISO Pre Insulated ducts are manufactured keeping in mind all the international standards Like SMACNA, ASHREA, etc. ISO Ducts can be fabricated to any design to suit the construction and air conditioning requirements of the building.

Pre Insulated Duct Panels are the modern trend in HVAC Ducting. ANBI is one of the largest suppliers, and exporters of Pre-insulated duct panels in Dubai, UAE, the Middle East, and around the world with the brand name of ISO Ducts. Hapri Ducts are CFC-Free and Environment-Friendly. ISO ducts are made of Rigid Polyisocyanurate (Polyisocyanurate)/Polyurethane (Polyurethane) foam with higher densities, compressive strength, and best thermal properties.

ISO Ducts – Pre Insulated Panels can be installed either in the interior or on the exterior of a building, visible or with a false ceiling.

Also available in 25mm,& 30mm and can be also produced in a tailor-made thickness
