Big sight glass, low oil level, and forced-feed oil design to avoid running without oil and ensure reliable use
Integrated pump body structure,150 microns of ultimate vacuum.
Innovative appearance design with an increased area for heat emanation to realize low-temperature increase while in running.

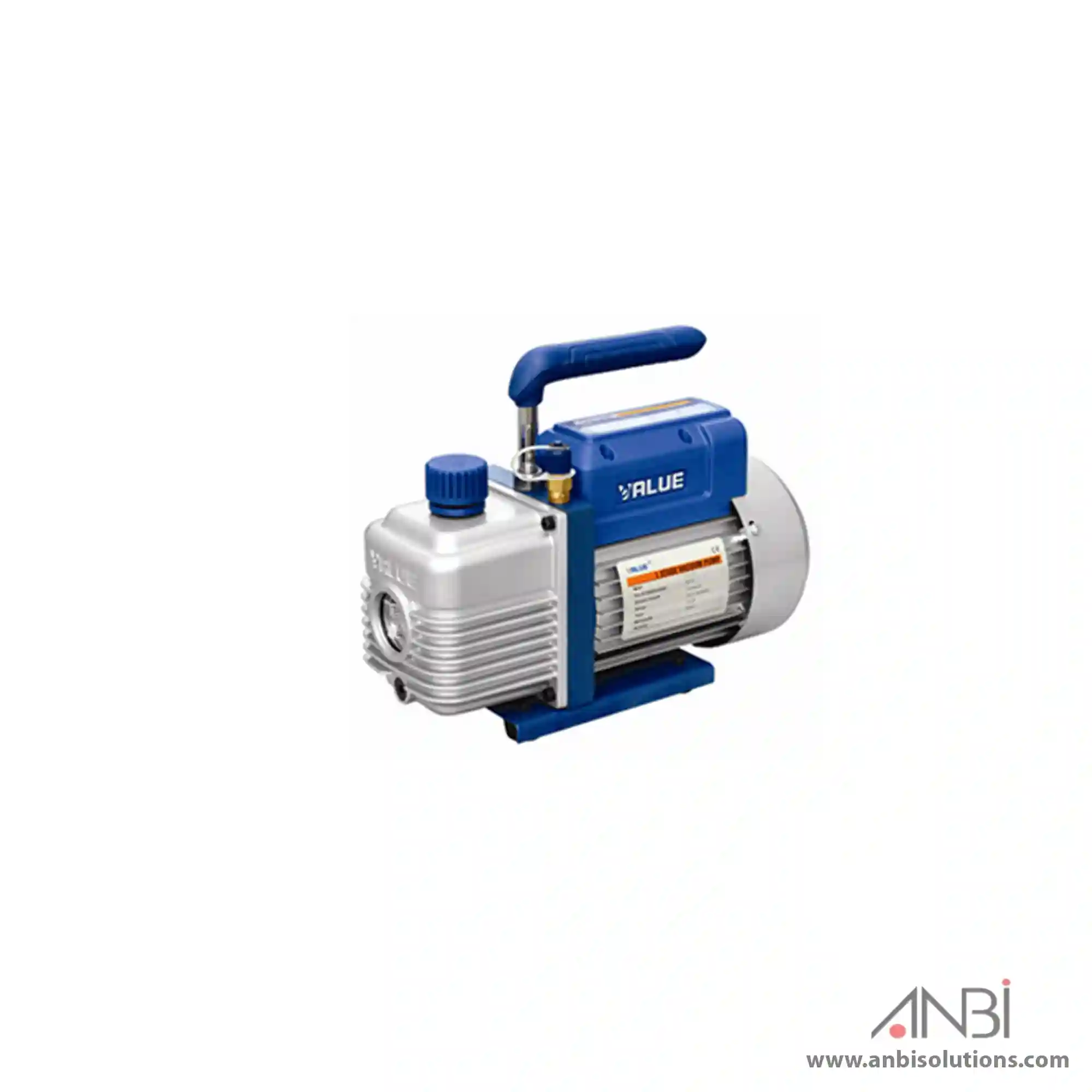

Model: VE125N
Flow Rate
50Hz
2.5 CFM
70 l/min
60Hz
3.0 CFM
84 l/min
Ultimate vacuum
Partial Pressure: 2 Pa
Total pressure: 150micron
Power: 1/4 HP
Inlet port: 1/4″ Flare
Oil Capacity: 310 ml
Dimensions(mm): 285X124X230
Weight: 7.1 kg
