Big sight glass, low oil level, and forced-feed oil design to avoid running without oil and ensure reliable use
Integrated pump body structure,150 microns of ultimate vacuum.
Innovative appearance design with an increased area for heat emanation to realize low-temperature increase while in running.

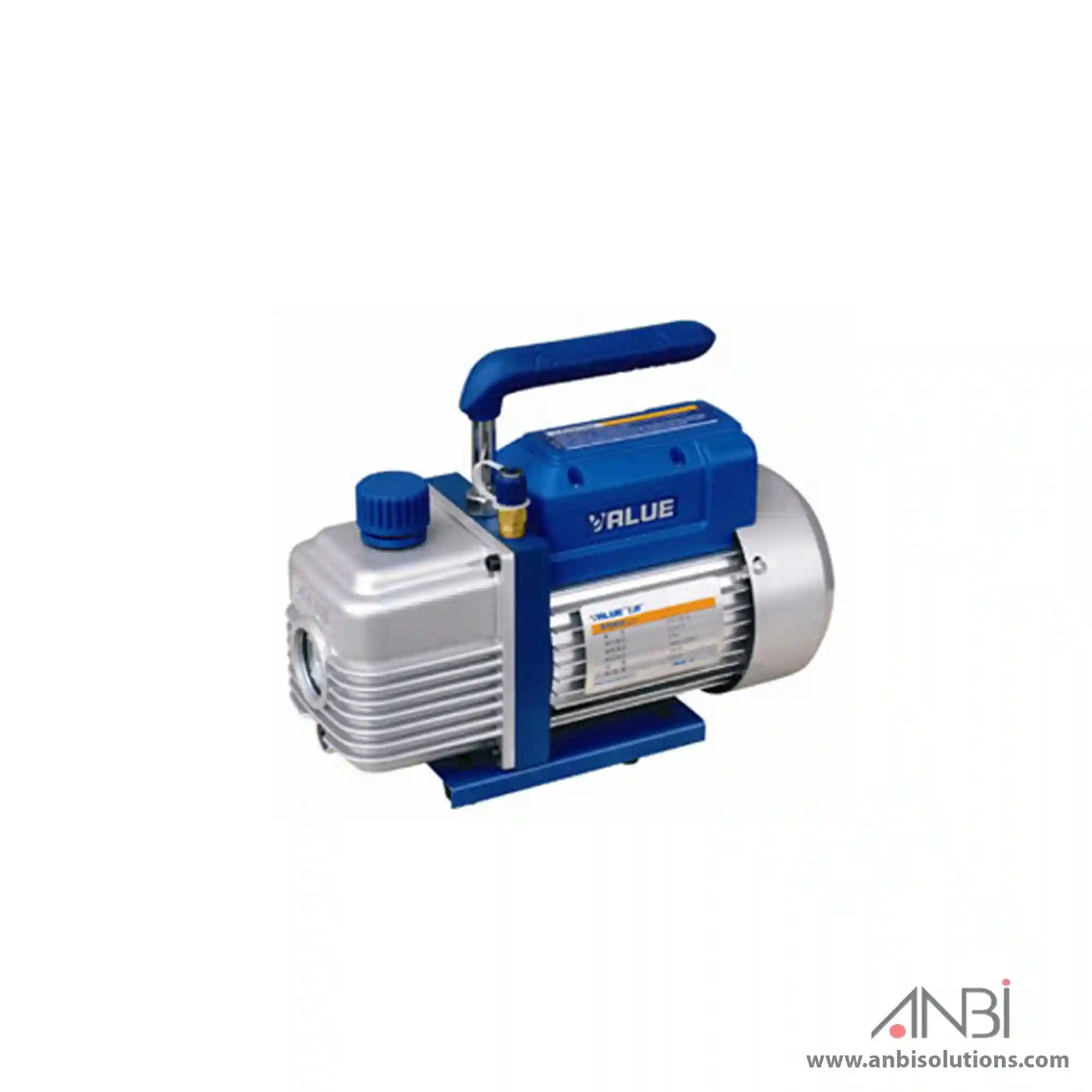

Model: VE2100N
Flow Rate
50Hz
10.0 CFM
283 l/min
60Hz
12.0 CFM
340 l/min
Ultimate vacuum: Partial Pressure 2X10-1 Pa
Total pressure: 15micron
Power: 1 HP
Inlet port: 1/4″ & 3/8″ Flare
Oil Capacity; 590 ml
Dimensions(mm); 400X145X270
Weight: 16.7 kg
