Big sight glass, low oil level, and forced-feed oil design to avoid running without oil and ensure reliable use
Integrated pump body structure,150 microns of ultimate vacuum.
Innovative appearance design with an increased area for heat emanation to realize low-temperature increase while in running.

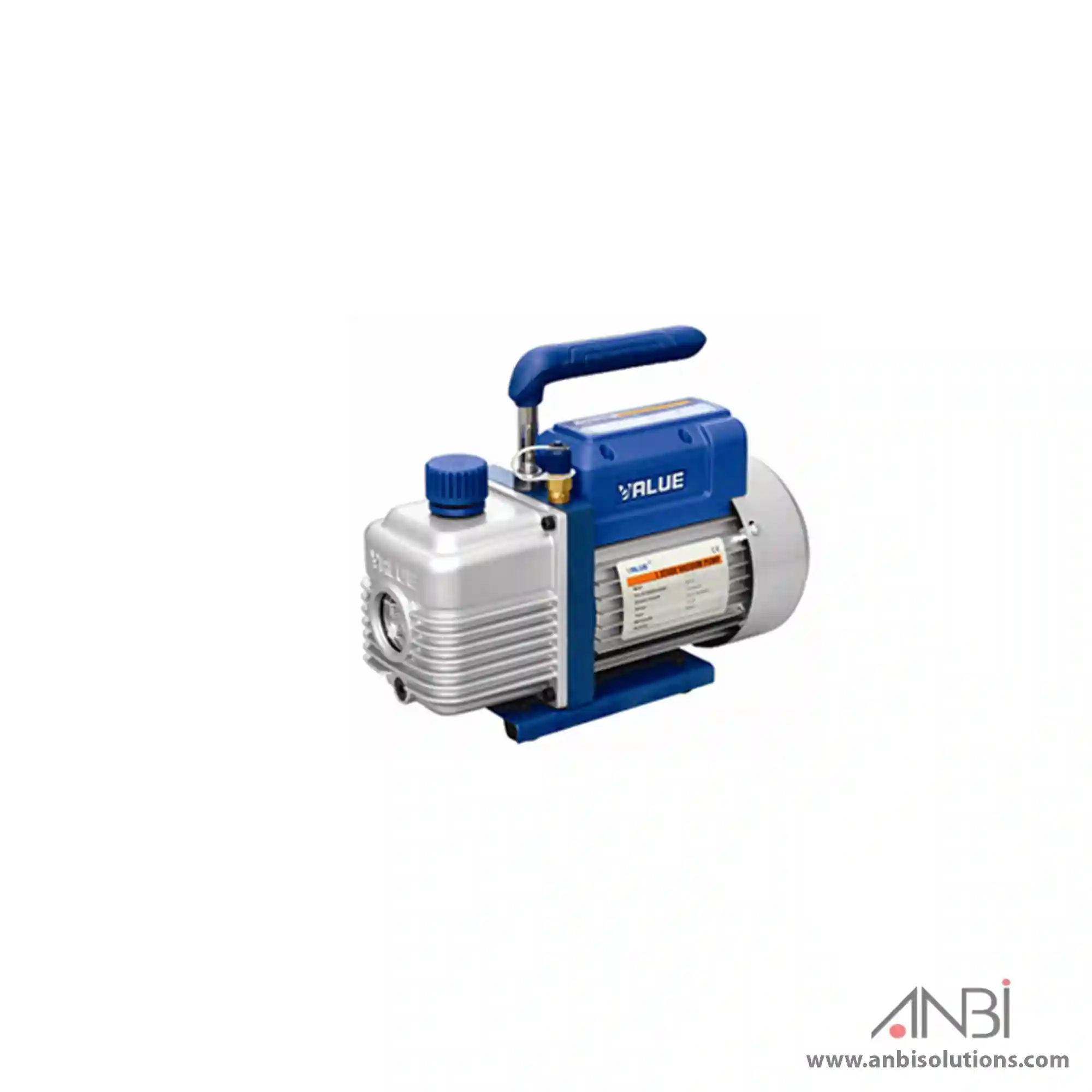

Model: VE180N
Flow Rate
50Hz
8.0 CFM
226 l/min
60Hz
9.0 CFM
254 l/min
Ultimate vacuum
Partial Pressure: 2 Pa
Total pressure: 150micron
Power: 3/4 HP
Inlet port: 1/4″ & 3/8″ Flare
Oil Capacity: 660 ml
Dimensions(mm): 395X145X257
Weight: 14.6 kg
