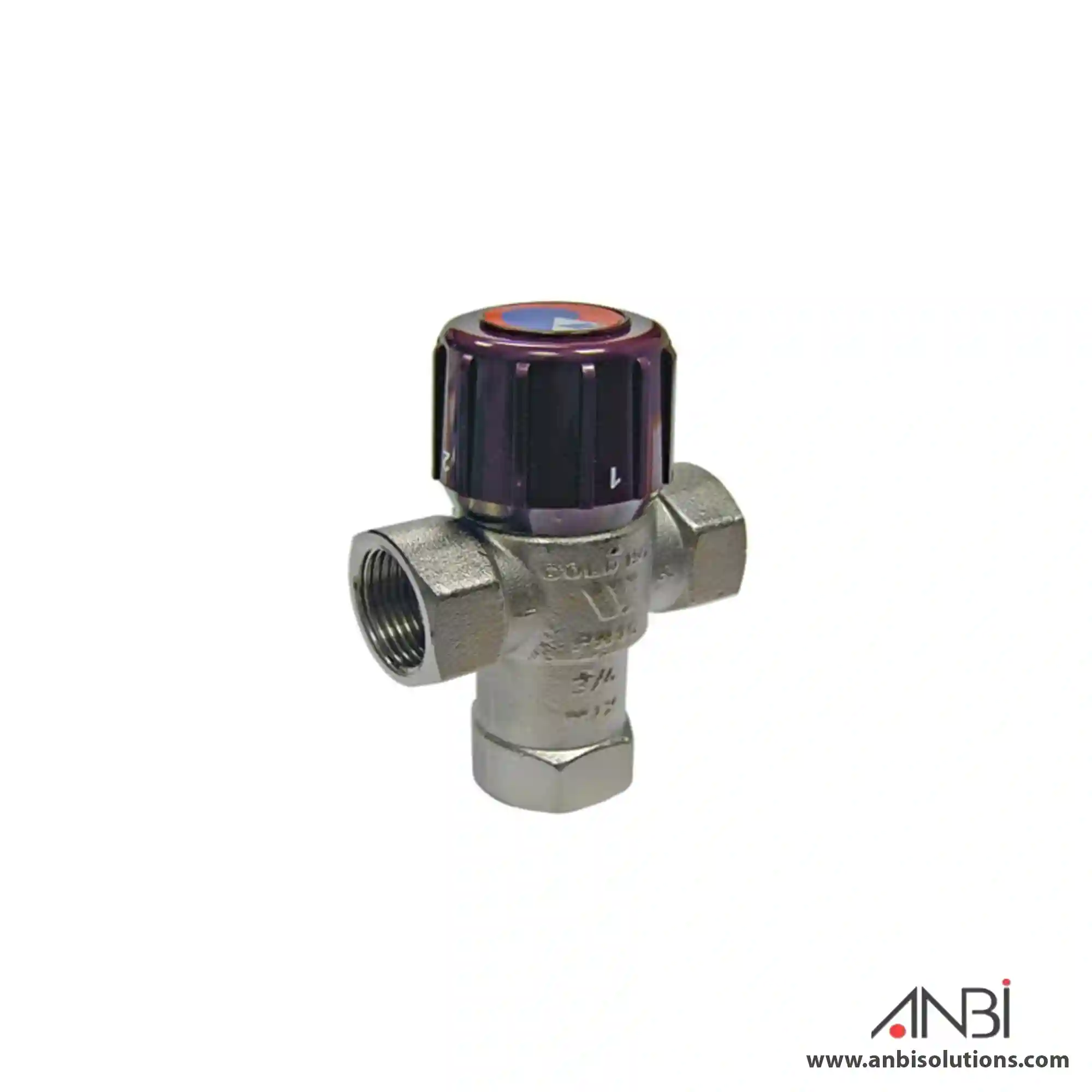

WATTS Thermostatic Mixing Valves Aquamix 61C

The thermostatic mixing valves Aquamix Series 61C, 62C, and 61CM are offered in versions with male and female connections as well as 4 setting positions.

The valve body is made of brass nickel-plated on both inside and outside; moreover, an inner Teflon coating is provided in order to reduce scaling caused by hard water.

Each valve is provided with two mesh strainers which, when inserted inside the hot water (+) and cold water (-) ports avoid depositing of coarse particles thereby protecting valve operation.

AQUAMIX.

Thermostatic mixing valve with 4 set positions. Anti-scald protection.
Setting range: 32°C ÷ 50°C. Max. differential pressure: 2 bar. Female connections.
Without internal check valves.

Thermostatic Mixing Valve Installation

Choice of the thermostatic mixing valves Aquamix Series 61C, 62C and 61CM depends on the SIZE of the connecting piping. The valve can be installed on iron pipes (Series 61C and 62C), copper and plastic pipes (Series 61CM) in any position (vertical or horizontal). The valves are designed forperiodic maintenance of the internal components in
order to remove any scaling without use of solvents and without scratching the metal surfaces. The three ways should be shut off before maintenance. This type of maintenance could be avoided by installing a water softener before the hot water inlet. Refer product catalog for Thermostatic Mixing Valve installation diagrams, Aquamix.
