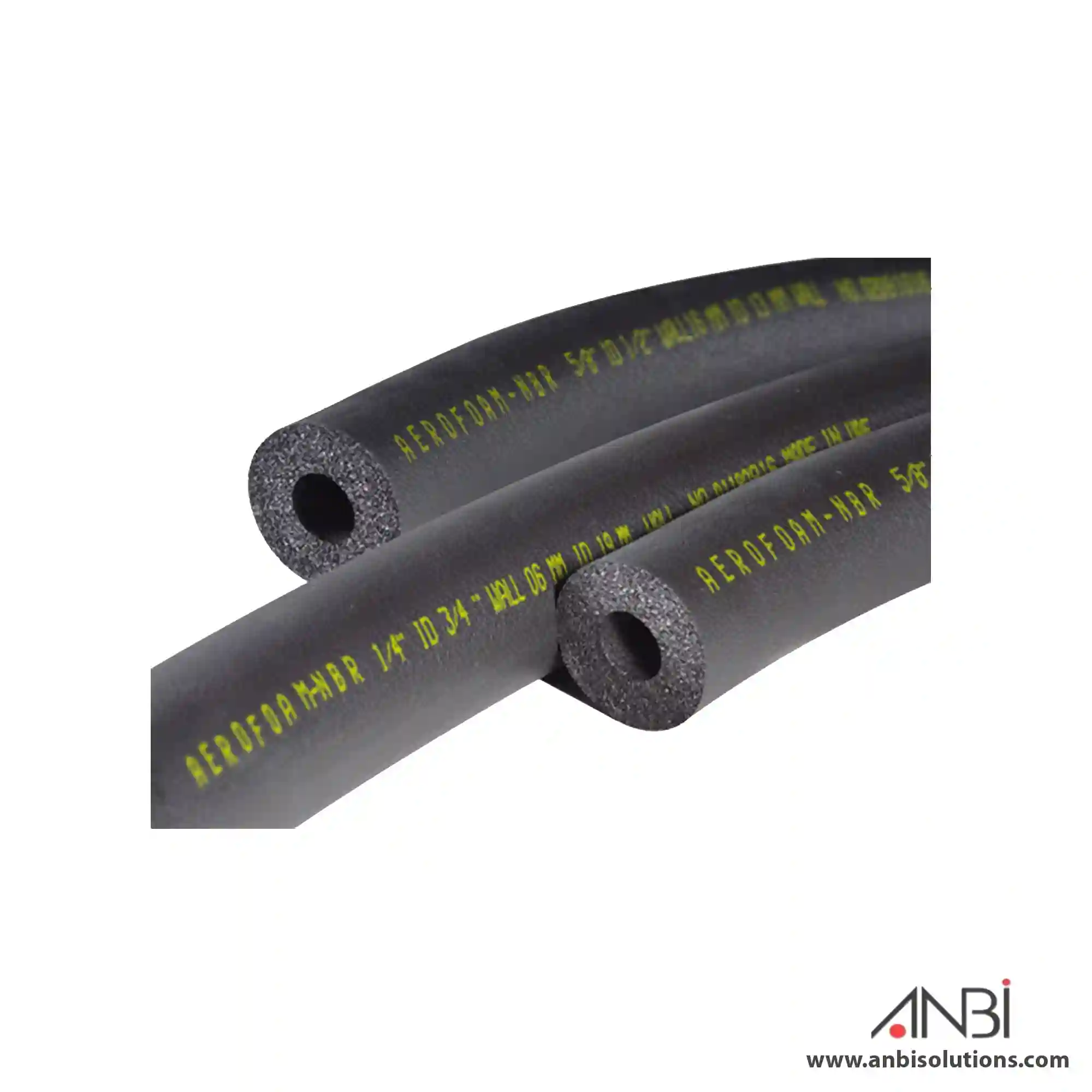

Aerofoam Rubber Insulation NBR Tubes

Aerofoam Rubber Insulation NBR Tubes are closed-cell elastomeric foam structures whose non-porous composition offers high thermal efficiency as well as protection from imminent condensation problems and helps in sound absorption. Due to their dimensional stability, they reduce friction and reduce installation time significantly.

Aerofoam NBR is a flexible closed cell thermal insulation material for condensation control in air-conditioning, refrigeration, and chilled water installation. It is also suitable for reducing thermal losses in the heating and plumbing system. Not only are they environmentally friendly, but they also pose no harm to human health, they have zero Ozone Depletion Potential (ODP), Global Warming Potential (GWP) of less than five, and a low Volatile Organic Compound (VOC) of less than 6 µg/m2/hr in 24 hours.  The elimination of chlorofluorocarbons (CFC) and hydrochlorofluorocarbons (HCFC) from the production process while complying with LEED requirements make Aerofoam® NBR Nitrile Flexible Elastomeric Tubes ideal for use in projects that need optimal air conditioning, refrigeration, chilled water pipes, and hot water pipes thermal insulation.

Applications
Air conditioning
Refrigeration
Chilled water pipes
Hot water pipes
Liquid gasses (cryogenic and LNG lines)

Properties
Fire rated “CLASS O” as per BS 476 Parts 6 & 7;
Very low water vapor permeance (0 perms);
High water vapor diffusion factor (> 17,000);
Very low water absorption rate (0.06% by volume);
High thermal efficiency (λ24˚ C = 0.033 W/mK; λ46˚ C = 0.035 W/mK);
Wide temperature range (from -50˚ C to +105˚ C);
Chemical resistance – resistant to most chemicals (sodium, silica, fluoride, chloride, etc.);
Antibacterial & antifungal;
Environmental friendly – ODP = 0 and GWP < 5;
Very low VOC emission level ( < 6 µg/m2/hr in 24 hours);
Sound absorption properties;
Perfect fit to most of the pipe sizes;
Easy and fast to install.

Aeroform Size Range
