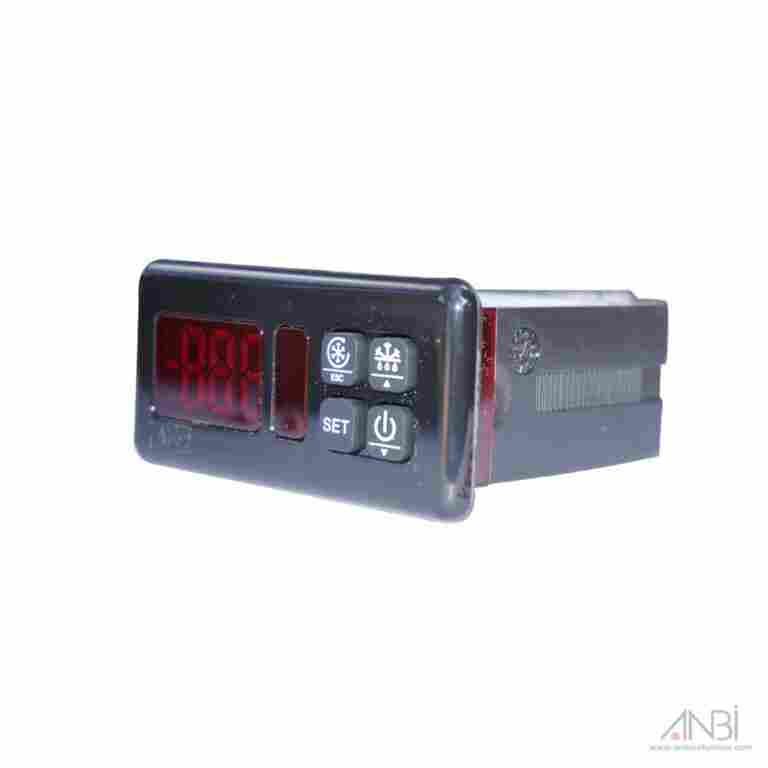

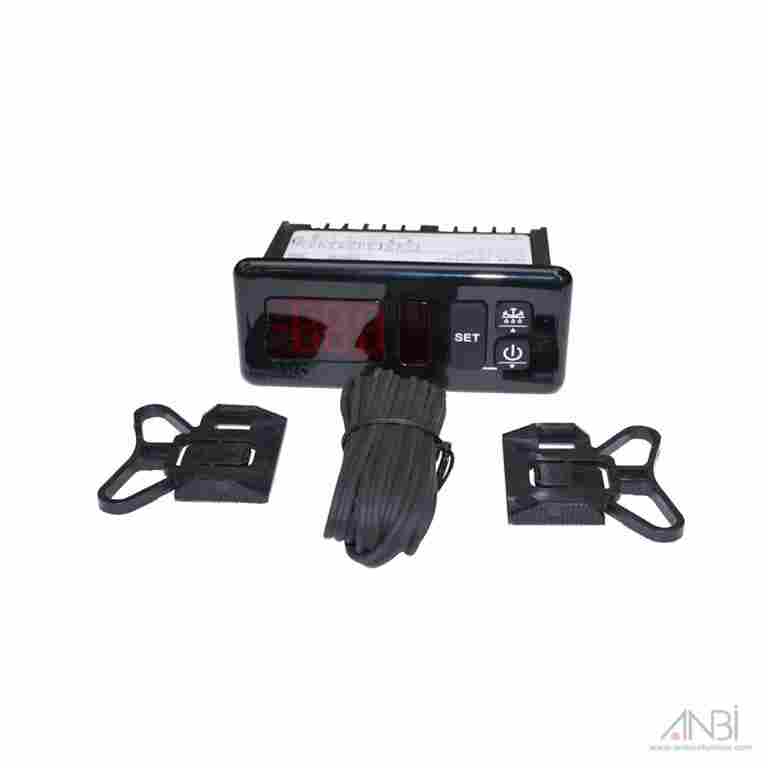

AKO Panel C Temperature Controller 250v | Universal Digital Thermostat, Commercial Refrigeration Thermostat for Walk-In Coolers, Reach-in Coolers, Supermarket Display Cases, & More DF1432300009

For new installation or replacement of all mechanical and digital thermostats.

Application: Industrial and commercial refrigeration, display cabinets, electrical panels, etc.

• Compressor, fan, and auxiliary relay.
• Auxiliary relay programmable as defrost, alarm, or light.
• Defrosts are programmable by controlling compressors, resistances (or cycle reversal), and fans.
• An optional probe allows defrosting by temperature.
• Programmable digital inputs such as door switches, external alarms, remote defrost, energy saving, or continuous cycle.
• Configuration wizard depending on application (8 configurations). The AKO-14323-C model has integrated RS-485 communication.

2 sensors / 3 out contacts / red light display / adaptable for all freezers and refrigeration equipment. Adjustable thermostat, adjustable defrost cycle (on time and on temperature), fan control, and connection to the door switch. No volatile memory.

SPECIFICATION

AKO-D14312 12 V~, 3 relays, 1 NTC probe included Standard Panel

AKO-D14320 120 V~, 3 relays,1 NTC probe included Standard Panel

AKO-D14323 230 V~, 3 relays, 1 NTC probe included Standard Panel

Range from -50 ºC to +99.9 ºC, 3 relays, panel mounting

• NTC probe temperature range -50ºC to + 99.9 ºC
• PTC probe temperature range -50 ºC to +150 ºC
• Temperature Range (ºC/ºF) • Resolution 0,1 ºC
• Accuracy ±1 ºC
• Panel cut-out dimensions 71 x 29 mm
• Front panel dimensions 79 x 38 mm
• Depth 61 mm
• Compressor relay SPDT 16 A: AC1=12, AC3=9
• Aux relay SPST 8 A: AC1=8, AC3=4
• Fan relay SPST 6 A: AC1=5, AC3=4
