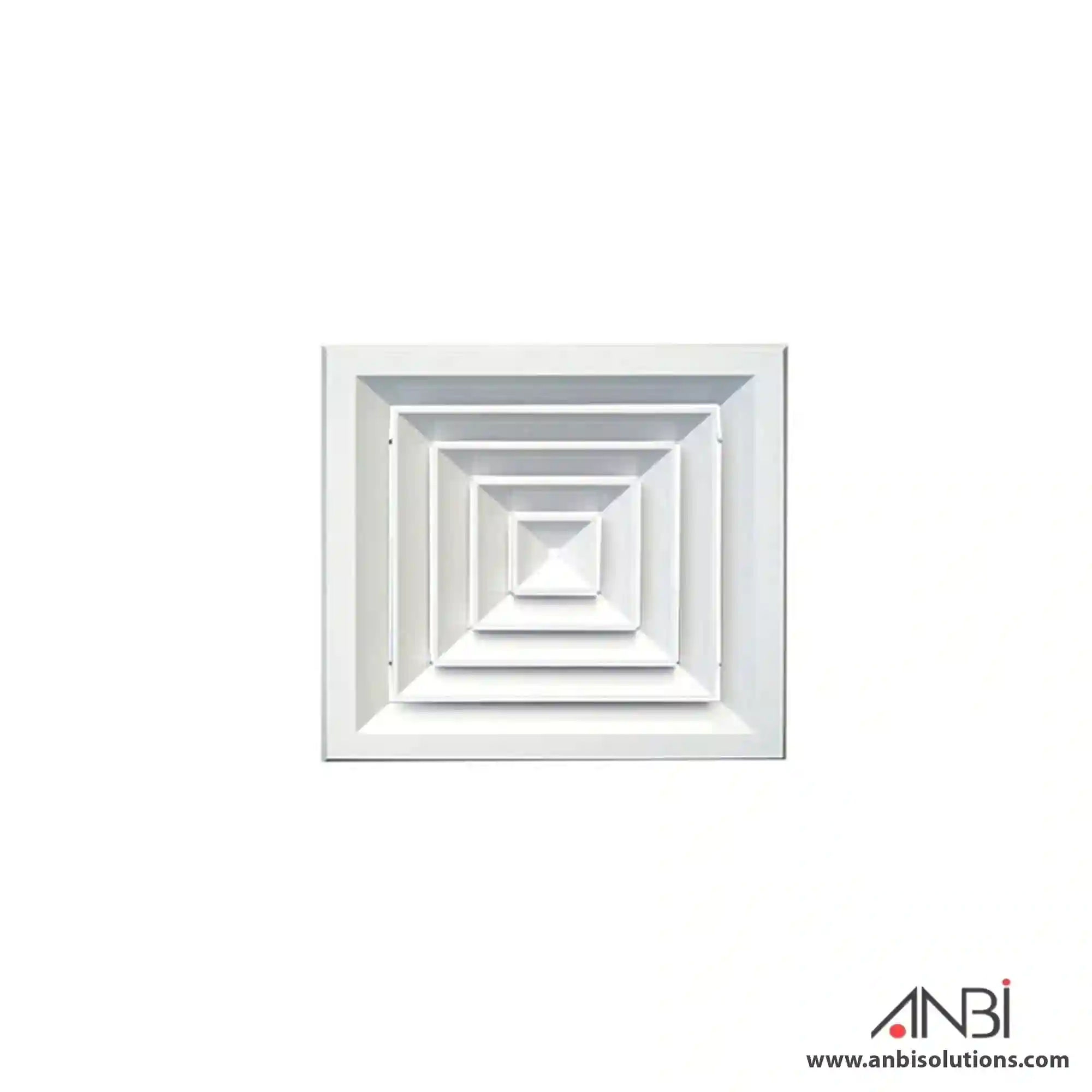

The core can be easily removable and interchangeable to allow for maximum flexibility in installation, maintenance, and damper adjustment.
41.00
61.00
17.50/month or 4 interest-free payments
For Bulk Orders You May Click The Link To Reach Us
The frame and blades are of high-quality extruded aluminium profiled construction with the advantages of corrosion resistance and rigidity.
Louvred type core or is fixed to the frame with aluminium pins loaded with steel springs.
The damper is fixed rigidly to the frame by aluminium rivets. Fixing by spring clips is an option.
Damper blades are separated from its frame by nylon bushes.
The opposed blade damper is screw operated from the face opening of the diffuser after removing the internal core. Lever operated damper as an option.
A foam gasket is sealed around the back of the frame as an option to avoid air leakage.
Suitable for flush mounting inlay in type ceiling.
Stamped frame and core available.
Available in rectangular sizes as an option.
One, two and three-way discharge pattern arrangements are shown below
Construction:
Frame and core: High-quality extruded aluminium profile with 33 mm flange width.
Damper frame and blades: High-quality extruded aluminium profile with a natural aluminium finish. Black matt finish as an option
| Weight | 1 kg |
|---|---|
| Size | 150 x 150 mm, 225 x 225 mm, 300 x 300 mm, 375 x 375 mm, 450 x 450 mm |
