AquaMatic K52 Diaphragm Valve PVC  Thermoplastic Valves

The unique Y-pattern design with a large seat opening and high lift disc permits higher flow rates at lower pressure loss than other comparable valves.

AquaMatic / AqMatic Valve K52

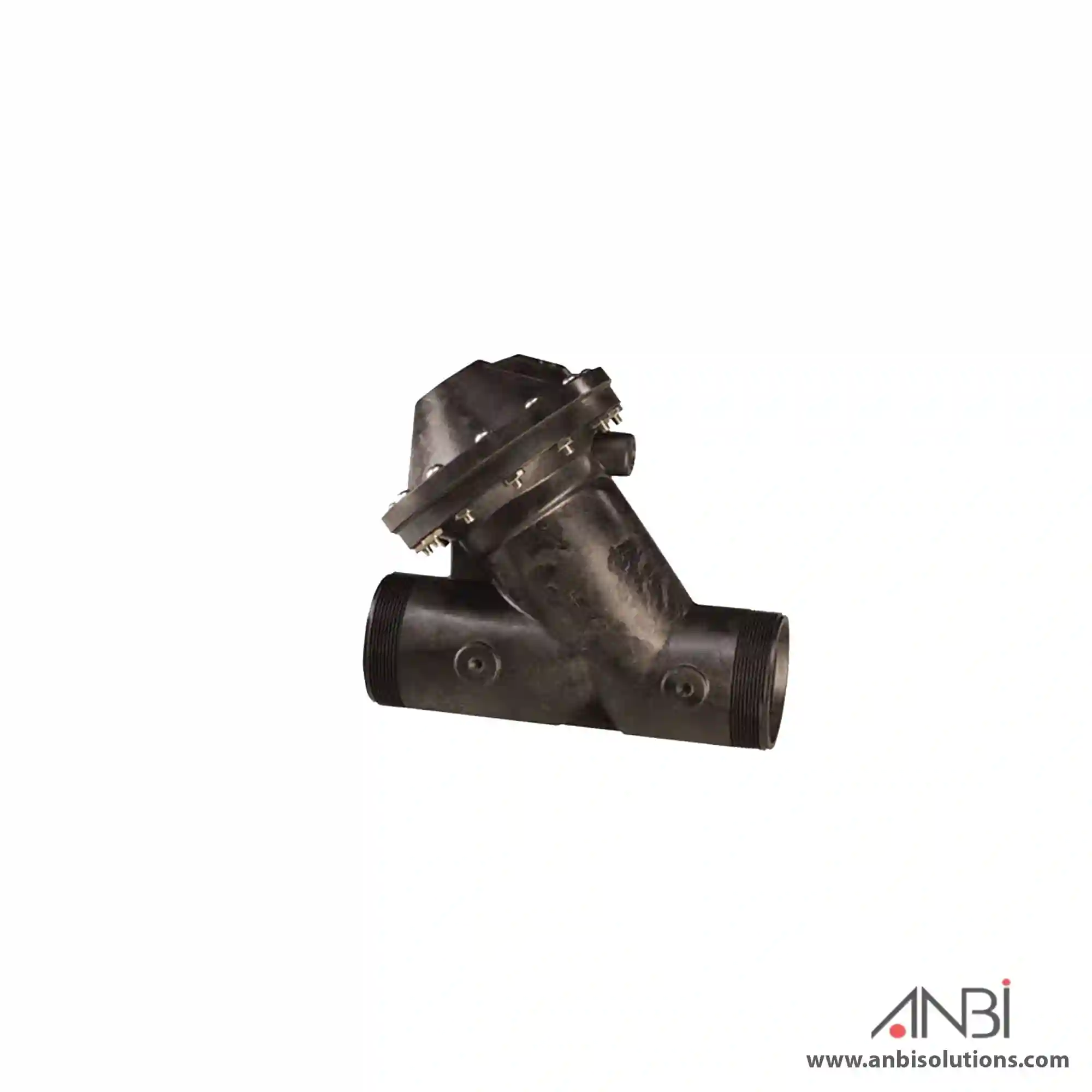

½-inch to 2½-inch “Y” pattern AquaMatic K52 diaphragm valves
Glass-filled thermoplastic body and cap

AquaMatic K52 Features & Benefits
Large Seat opening and high lift disc for higher flow rates at a lower pressure loss.
The cost-effective solution both in initial cost, as well as lifetime maintenance expenses.
Separate diaphragm chambers protect the diaphragm from the flow stream while allowing the valve to be serviced in-line.
Pre-formed, stress relieved diaphragm minimizes fatigue, maximizes valve responsiveness, and diaphragm lifetime
All internal parts in contact with media are made of composite materials.
Can be actuated with either air or water as control fluid.
Designed for water treatment applications including those requiring acids, caustic and harsh chemicals that would rapidly corrode metal valves.
Separate flow and control chambers permit positive closing without springs, and only nominal cost for spring assist opening for low-pressure and self-draining applications.

AquaMatic K52 Accessories & Options
Seal and diaphragm materials available
Spring-assist (open or closed)
Normally open or closed
Position indicator
K55 isolated bonnet valve
