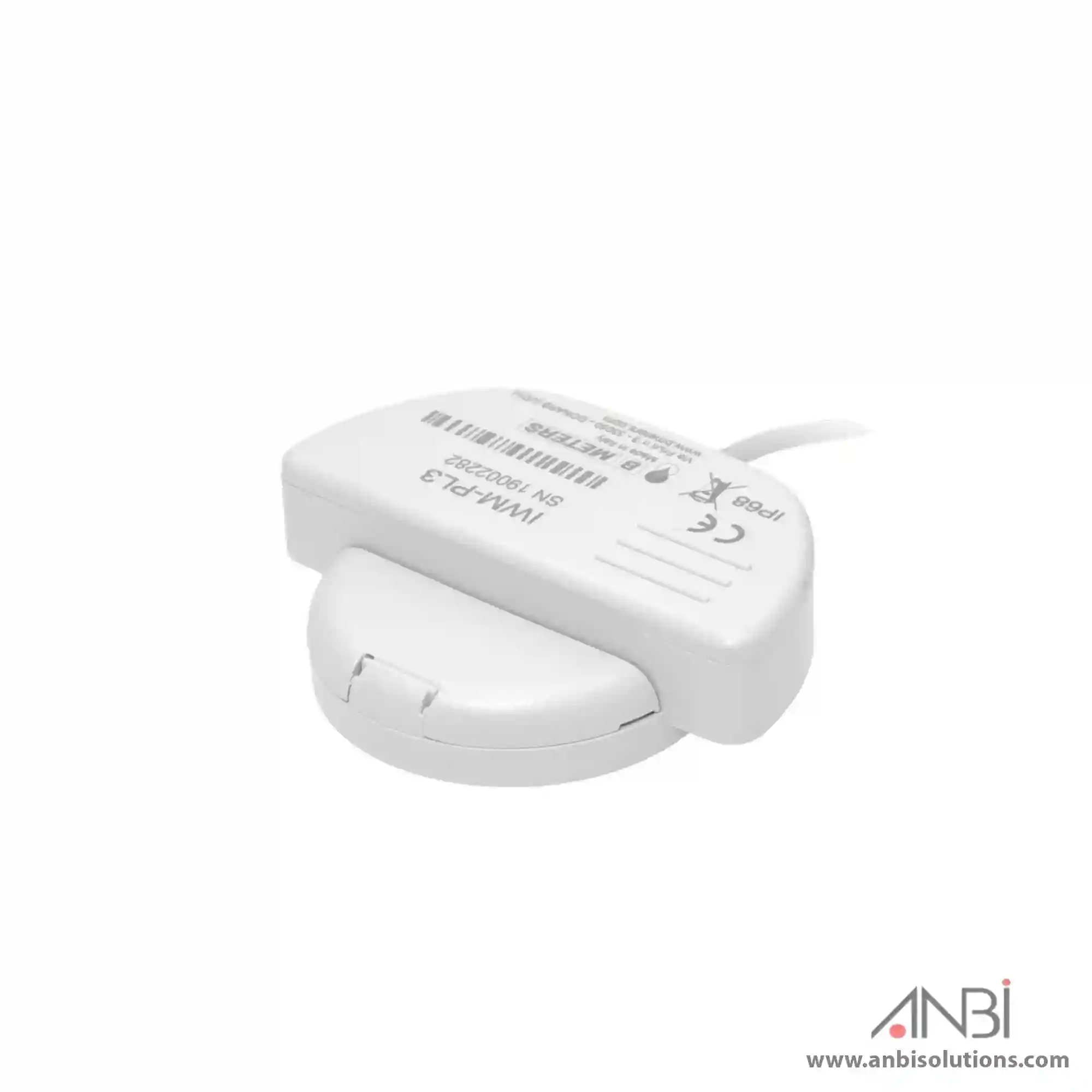

The IWM-PL3 is suitable for remote reading applications in commercial and industrial sectors, acting as an electronic pulse-emitter.
550.00
17.50/month or 4 interest-free payments
For Bulk Orders You May Click The Link To Reach Us
Model- IWM_PL3
TECHNICAL FEATURES
| Output signal | Supply: maximum 30VDC (100mA) Type: Polarized open-collector |
| Cable length | 1,5 meters (4 conductors) |
| Compatible water meters | GMDM-I, GMB-RP-I, GMB-I |
| Pulse output minimum value (K) | 1 liter |
| Energy supply | Non-replaceable lithium battery, maximum lifetime 10 years* |
| Protection class | IP68** |
| Weight | 122 g |
| Size (l x p x h, cable excluded) | 88 x 69 x 28 mm |
| Working Temperature | +1° / +55°C |
| Module programming requirements | Android device (smartphone, tablet, etc.) with an NFC interface and the NFC IWM Config APP freely downloadable from GOOGLE PLAY |
* The battery life strongly depends on the working time window, set during the configuration process, and on the environmental conditions. ** IP68: maximum 24 hours of continuous submersion at 1 m depth.
It allows the acquisition of the consumption of the counter by third-party systems with a universal interface and integrating advanced counting functions and fraud detections.
The use of an inductive target on the meter dial excludes the possibility of magnetic fraud and makes the application insensitive to the vibrations of the pipe.
