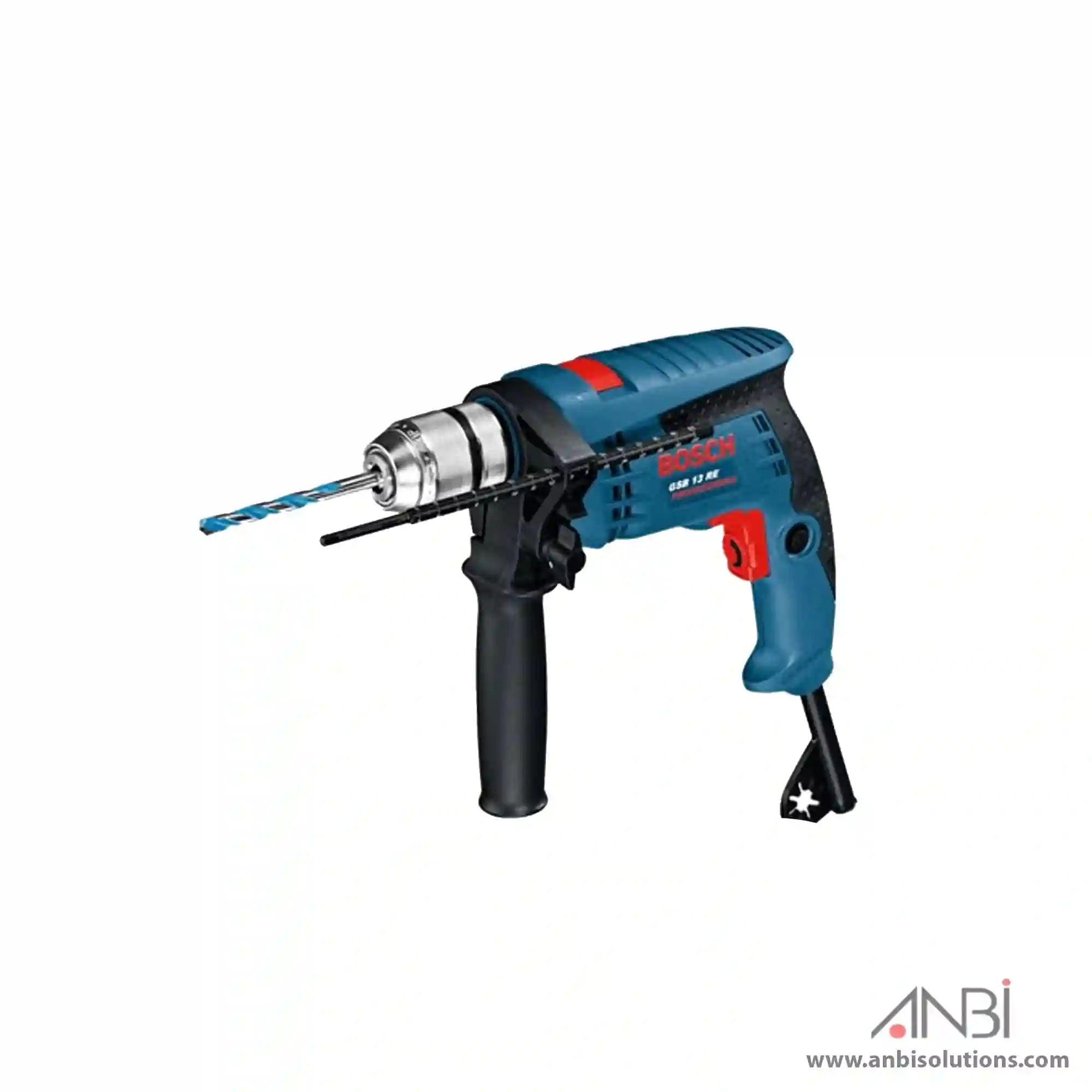

BOSCH Impact Drill GSB13 RE Professional

The GSB 13 RE Professional is a compact corded 1-geared entry-level impact drill. Its 1.8 kg lightweight design and small housing size provide convenience in handling and maneuverability.

It is also particularly robust, including a durable metal keyless chuck. Additionally, this impact drill delivers professional results at an optimum price-performance value.

TECHNICAL DATA

Additional data
Rated input power – 600 W
Weight – 1.8 kg
No-load speed, 1st gear – 0 – 2,800 rpm
Power output – 301 W
Impact rate at no-load speed – 0 – 44,800 bpm
Rated torque – 1.8 Nm
Drill spindle connecting thread – 1/2″-20 UNF
Chuck capacity, min./max. – 1.5 – 13 mm

Drilling range
Drilling diameter in wood – 25 mm
Drilling diameter in steel – 10 mm
Drilling diameter in masonry  – 15 mm

Total vibration values (Drilling in metal)
Vibration emission value ah  – 3 m/s²
Uncertainty K –  1.5 m/s²

Total vibration values (Impact drilling in concrete)
Vibration emission value ah  – 26 m/s²
Uncertainty K – 3 m/s²

Total vibration values (Screwdriving)
Vibration emission value ah – 2.5 m/s²
Uncertainty K – 1.5 m/s²

Noise/vibration information
Sound pressure level – 97 dB(A)
Sound power level – 108 dB(A)
Uncertainty K – 5 dB

Drilling in metal
Vibration emission value ah – 3 m/s²
Uncertainty K – 1.5 m/s²

Impact drilling in concrete
Vibration emission value ah – 26 m/s²
Uncertainty K – 3 m/s²

Screwdriving
Vibration emission value ah – 2.5 m/s²
Uncertainty K – 1.5 m/s²

The A-rated noise level of the power tool is typically as follows: Sound pressure level 97 dB(A); Sound power level 108 dB(A). Uncertainty K= 5 dB.
