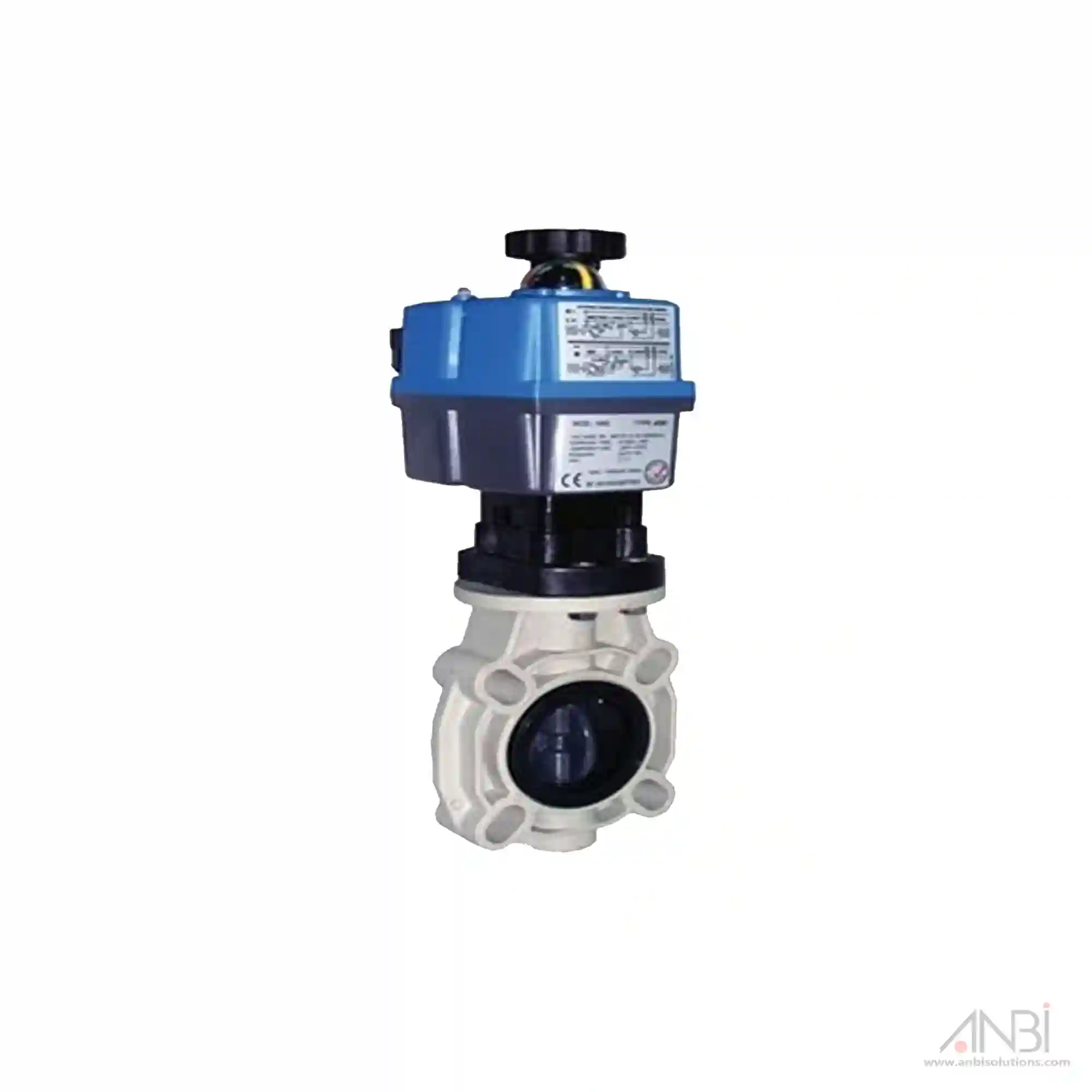

CEPEX Butterfly Valve PVC-U With Electric Actuator 302

Product description:

Ideally suited for flow control using minimal piping space.
Minimal pressure drop.
Low maintenance.
Excellent flow characteristics. Good mechanical strength.
One piece PP – GF body. Rubber seal available in food grade EPDM.
Disc available in different materials.
Ideally suited for industrial, water treatment or water distribution applications.
Non-wetted shaft in stainless steel.
Resistance to many inorganic chemicals.
[IND] Series Ball Valve with reversible electric actuator multi-voltage
Electronic torque control, with limitation of maximum torque
Anti-condensation heating resistor
Automatic/manual lever, with manual override
Open and closed volt free contacts
Indicator LED operating / error
Enclosure in anticorrosive polyamide
Actuator guaranteed for 20.000 cycles with a duty rating of 75%

Product Specification:-
Frequency: 50Hz
Brand Name: Cepex
Pkg Qty: 1
Testing Description: 100% factory tested.
Outer Diameter : 2-1/2 Inch,12 Inch,10 Inch,8 Inch,6 Inch,5 Inch,4 Inch,3 Inch

Electrically or pneumatically actuated valves automate flow control, offering several advantages over manual valves, in cases like:

The remote location of the valves.
Information about the valve position (open-closed) is needed at all times.
Significant torque.
Synchronized operations, make it impossible to operate different valves at the same time.
Reliability/repetitive operations: to avoid the possibility of negligences.
