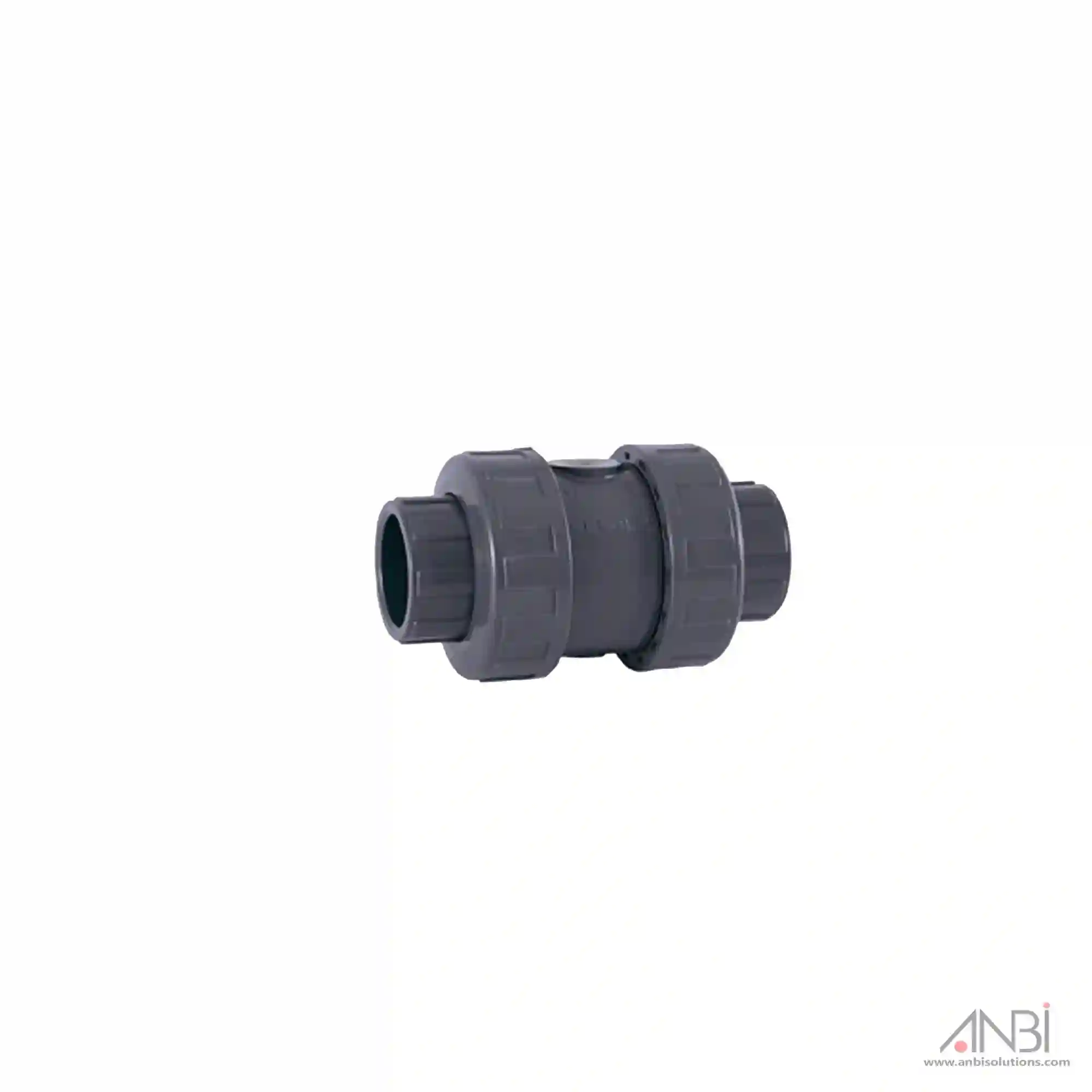

CEPEX Check Valve PVC-U Ball Series

Product Description
Cepex designs and manufactures an extensive family of check valves that can be used for a wide range of applications. These valves provide exact and reliable control of fluids and have been designed to offer maximum modularity and flexibility.

Check valves are available in accordance with several dimension standards (Metric, BSP, ASTM, NPT, British Standard, JIS…).

Features
Available in PVC-U and Corzan® CPVC.
Check, foot and swing check valves.
100% factory tested.
Easy installation and maintenance.
Resistance to many inorganic chemicals.
Excellent flow characteristics.
O-Rings: EPDM and FPM

Working Pressure
From D16 (3/8”) to D 63 (2”) – 16 bar (240 psi)
From D40 (2”1/2) to D110 (4”) – 10 bar (150 psi)

Standards
Available Standards: Metric, ASTM, British Standard, JIS.
Threaded versions: BSP & NPT.

Sizes
From 16 mm up to 110 mm (3/8”- 4”).
Threaded and solvent socket
