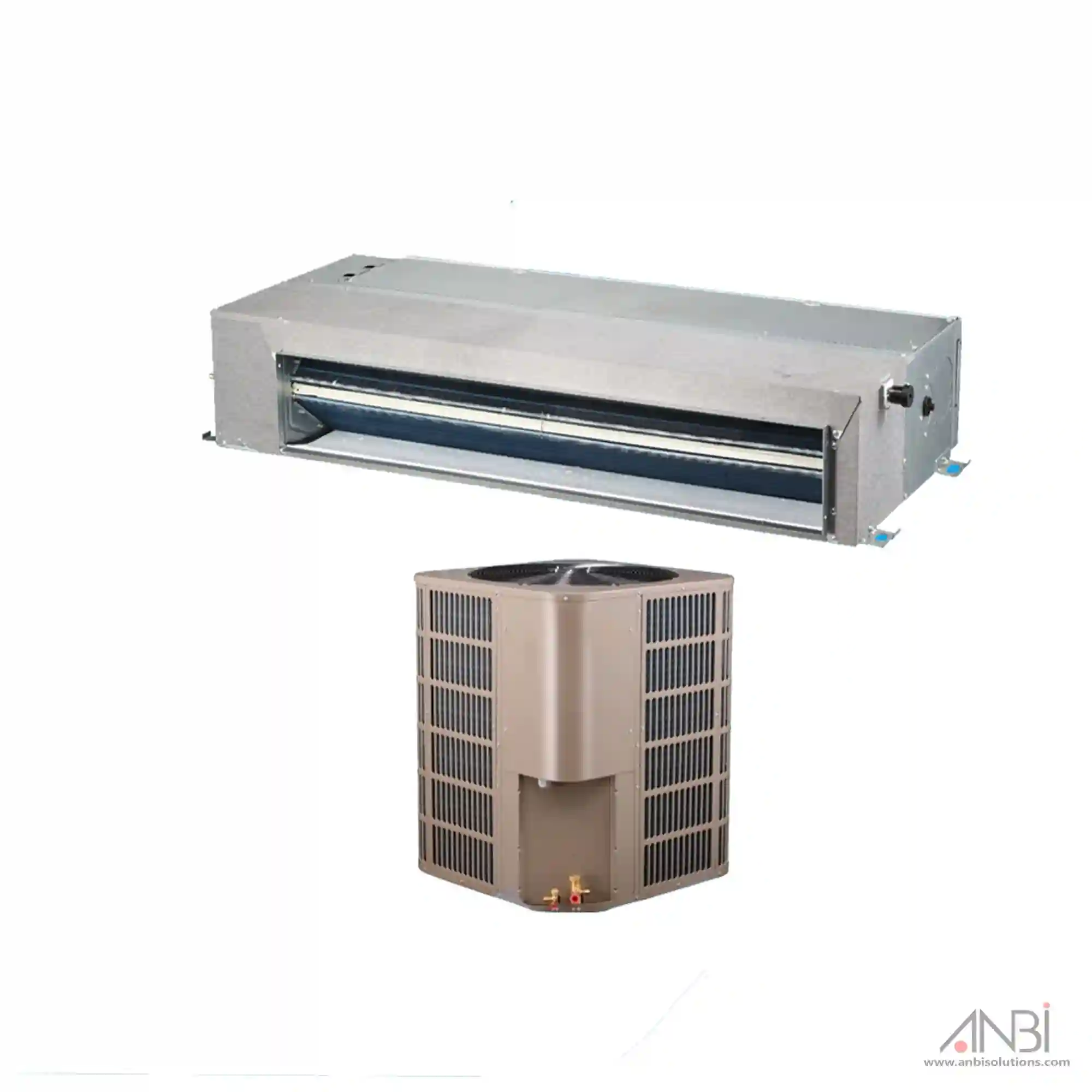

CLIVET 5.0Ton Top Discharge Duct Split AC Scroll R410A CMT-XM60MC

EMSA and AHRI certificated Suitable for using refrigerant R410A

3-speed indoor fan for enhanced comfort

Blue hydrophilic fin & inner grooved copper pipe Air intake filter as standard

Outdoor fan motor insulation class: IP44

High-temperature operation – Cooling: from 17°C to 52°C

Long piping length. Max. equivalent piping length: 55m; Max. the vertical distance between ODU and IDU: 46m. (Notes: ODU is up.)

Cooling only

The capacity is based on the following conditions:

T1 cooling: Indoor temperature 27°C DB/19°C WB; Outdoor temperature 35°C DB.

T3 cooling: Indoor temperature 29°C DB/19°C WB; Outdoor temperature 46°C DB.

The refrigerant piping length between the indoor unit and the outdoor unit is 7.5m.

2. ESP: External static
3. Wire controller (5V) is standard, the remote control is: Indoor unit airflow volume is based on the standard ESP.
