CRAYFLEX® Flexible Duct Uninsulated 25 Feet

Crayflex® is a very strong fully flexible compressible light weight duct which is widely used in Air Conditioning and Ventilation Systems for Commercial, Industrial, and Residential applications. Crayflex® is extremely durable and will maintain dimensional stability when fully extended. Highly efficient when correctly installed, Crayflex® provides a maintenance-free service life under normal operating conditions.

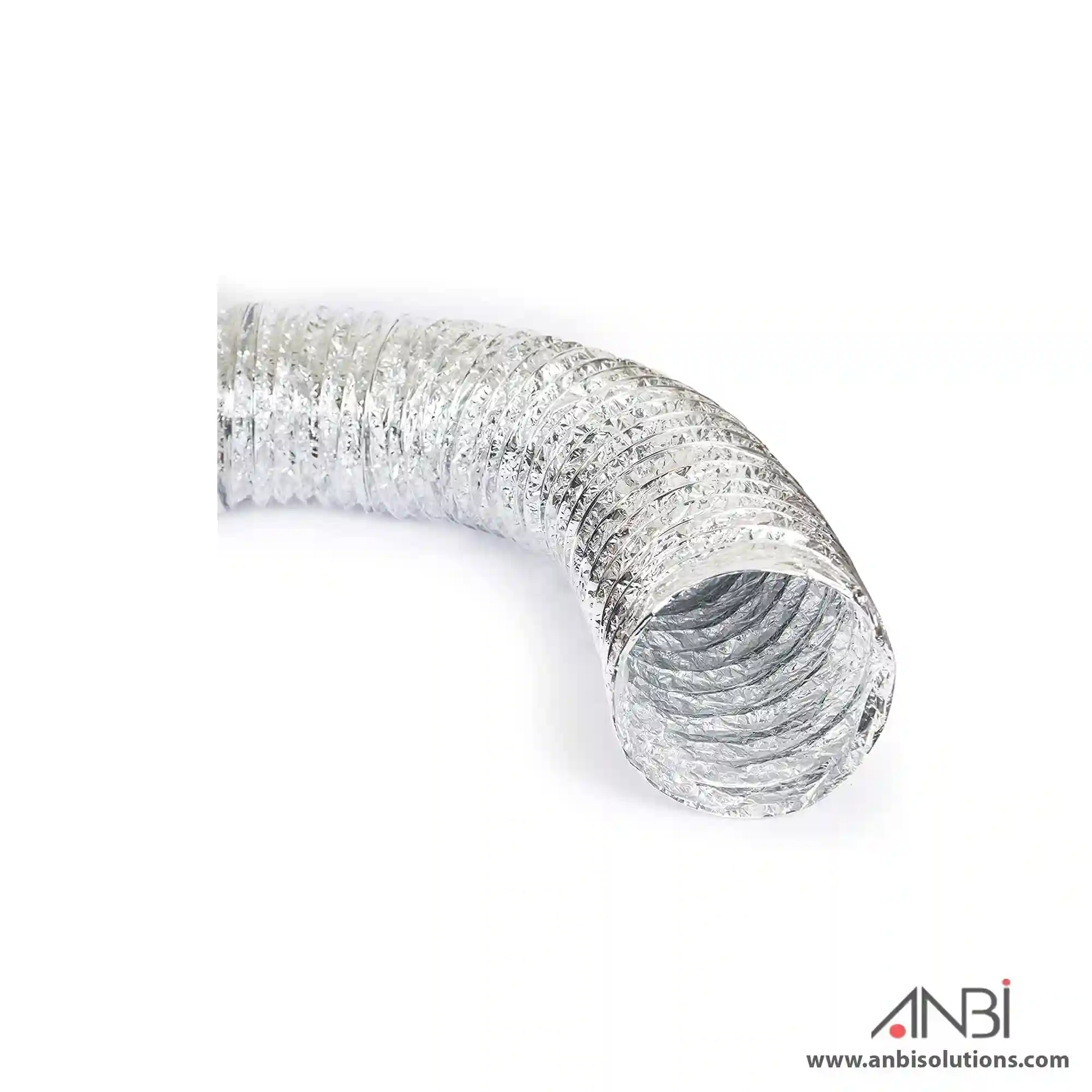

Crayflex® 13APM-D is an uninsulated flexible duct made of triple lamination of aluminum foil, polyester and metallized polyester film permanently bonded to a coated spring steel wire helix.

Applications:
Ideal for all Air Conditioning / Ventilating System including Hospitals, Hotels, Commercial and office Buildings and many other Industrial and Residential applications.
Available bare or pre insulated with fiberglass insulation.
Offers high degree of flexibility, which allows it to be easily connected to any desired position.
A quick and economical means of correcting misalignment between system components.
Allows ducting around obstacles where fabricated and fitted ducts would be difficult and costly to install.

Features:
Tear and puncture-resistant construction Crayflex® offers a smooth air-tight inner core when correctly installed which provides low friction loss. Energy-efficient and no fiberglass erosion into the air stream.

Highly resistant to corrosion and microorganism.

Able to withstand 16”w.g. air pressure suitable for low medium and high pressure class.

Low operating cost.

Compressed ducts reduces freight and storage costs.

No air leakage.

Quick installation

Spring steel wire helix assures dimensional stability, resists mechanical abuse and provides more efficient air distribution.

Meeting British Standards BS 476
ODP value zero and GWP value less than 5.
