Analog Actuator Modulating 24V AC 0-10V DANFOSS AME435QM
Danfoss’ energy-efficient technologies, such as thermostats, high-pressure pumps, digital and electric solutions and motors reduce emissions on a global scale. At the same time, our climate-friendly technologies enable the sustainable transition at lowest possible cost with relatively short pay-back times.
950.00
17.50/month or 4 interest-free payments
For Bulk Orders You May Click The Link To Reach Us

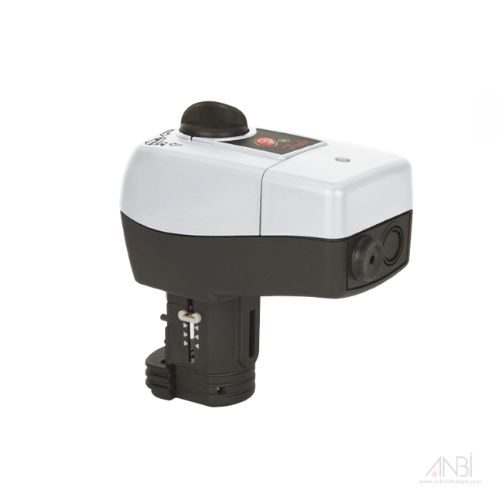

AME 435 QM actuator for modulating control is used with pressure independent balancing and control valve type AB-QM from DN 40 to DN 100.
The actuator has some special features:
> it automatically adapts its stroke to the valve end positions which reduces commissioning time
> valve flow adjustment feature; flow can be variably-adjusted from linear to logarithmic or opposite.
> the advanced design incorporates load-related ‘switch-off’ to ensure that actuators and valves are not exposed to an overload
Main data:
• Nominal voltage (AC or DC):
– 24 V, 50 Hz/60 Hz
• Control input signal:
– 0(4)-20 mA
– 0(2)-10 V
• Force: 400 N
• Stroke: 20 mm
• Speed (selectable):
– 7.5 s/mm
– 15 s/mm
• Max. medium temperature: 120 °C
• Self-calibrating
• LED signaling
• External RESET button
• Output signal
• Manual operation
