EXCEL Bourdon Type Pressure Gauge WP4

All SS (SS 304) Pressure Gauge Bourdon type

SCALE RANGE:
0 to 16 bar with PSI or 0-10 bar with PSI
0 to 20 bar with PSI

SPECIAL FEATURES
External zero adjustments (optional)
Stainless steel case & measuring system
Socket directly welded to the case
Dry and liquid-filled version
Standard followed EN 837-1 (for NS 100, 150 & 250 mm)
CE marking (as per PED 97/23/EC) (for NS 100 mm & 150 mm)

Application
Cryogenics
Pumps
Diesel engines & Refrigerating plants
Chemical & Petrochemical industries
Conventional & nuclear power plants
Environments & gaseous or liquid media that will not obstruct the pressure system.
Hydro-cleaning machines
Presses
Engine compressors
Turbines

All SS (SS 304) pressure gauge bourdon type

WP4   : Basic model code
40      : Dial Size – 100 mm / 4”
2       : Mounting- Direct bottom entry
2BM : Connection – 1/4“ BSP(M)

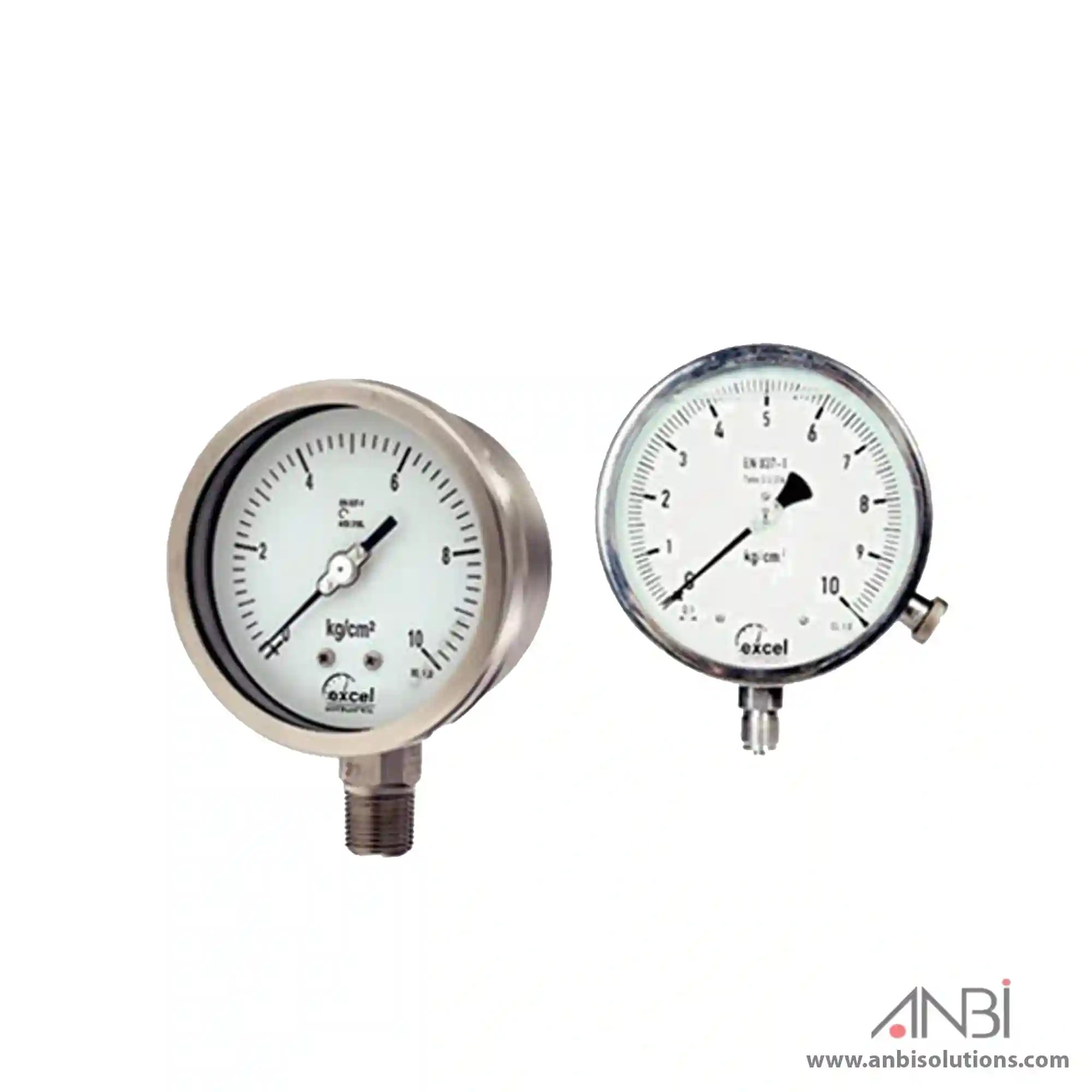

Image: Pressure Gauge WP4 Standard version & External zero adjustment
