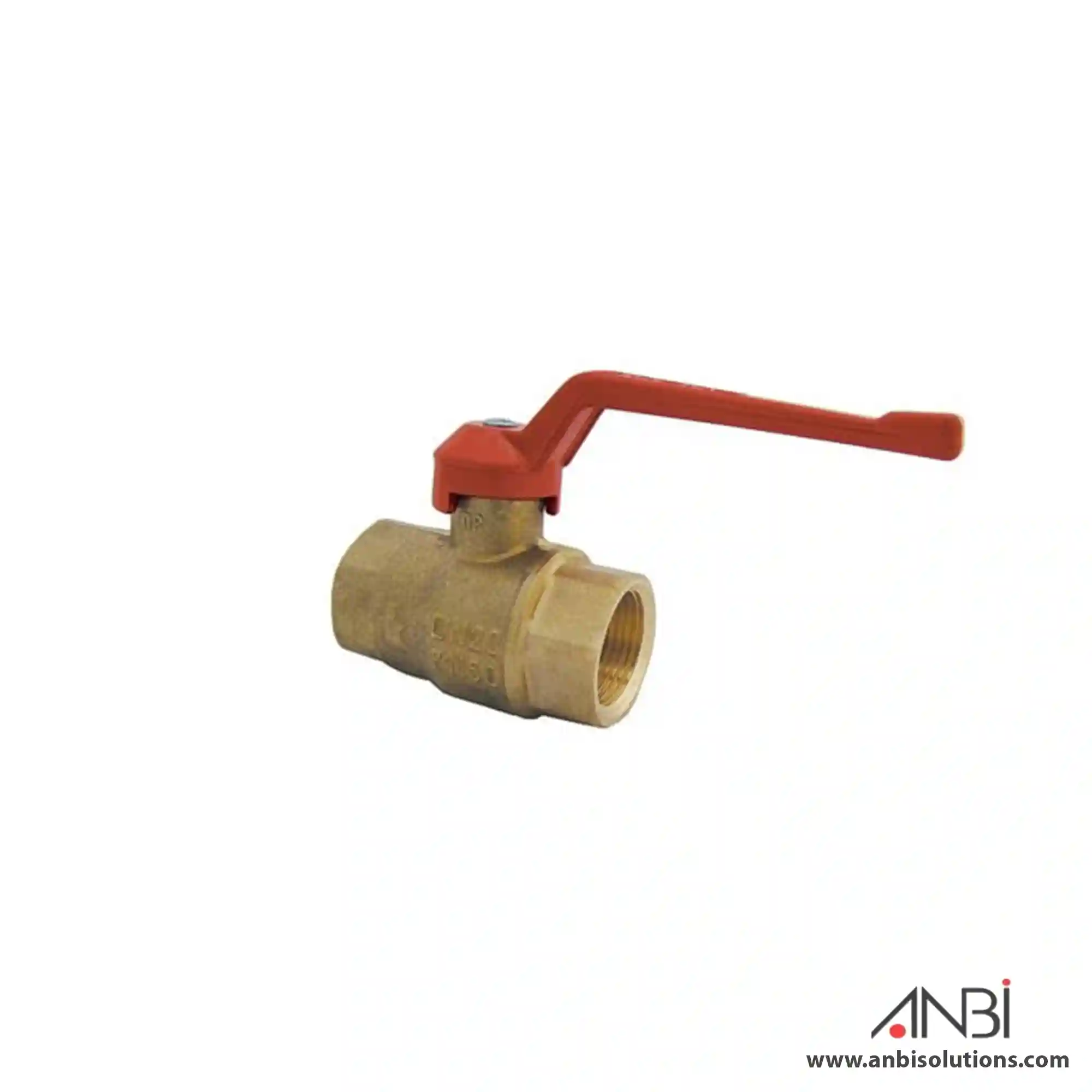

HERZ Ball Valve Full Port DZR Brass PN40 WRAS 12190

The ball valve is used in residential, commercial and industrial applications. It is designed for use on water, compressed air, and oils, but not on aggressive fluids. Pay attention soon to additives (see also resistance table for other uses)! The ball valve is used a shut off the device. It is not used as a regulating device and has to be in the fully opened or fully closed position.

Dezincification resistant brass, full bore, machined to a micro smooth finish, Female thread acc. ISO 228 Maximum temperature: 150 °C (water 110 °C).

DZR Brass body, full bore, Chrome-plated ball machined to a micro smooth finish, Female thread acc. ISO 228

Code Product Description DN PN
1219001

DZR Ball Valve

HERZ-Ball Valve WRAS Approved

Lever operated 15 50
1219002

DZR Ball Valve

HERZ-Ball Valve WRAS Approved

Lever operated 20 50
1219003

DZR Ball Valve

HERZ-Ball Valve WRAS Approved

Lever operated 25 50
1219004

DZR Ball Valve

HERZ-Ball Valve WRAS Approved

Lever operated 32 40
1219005

DZR Ball Valve

HERZ-Ball Valve WRAS Approved

Lever operated 40 40
1219006

DZR Ball Valve

HERZ-Ball Valve WRAS Approved

Lever operated 50 40
