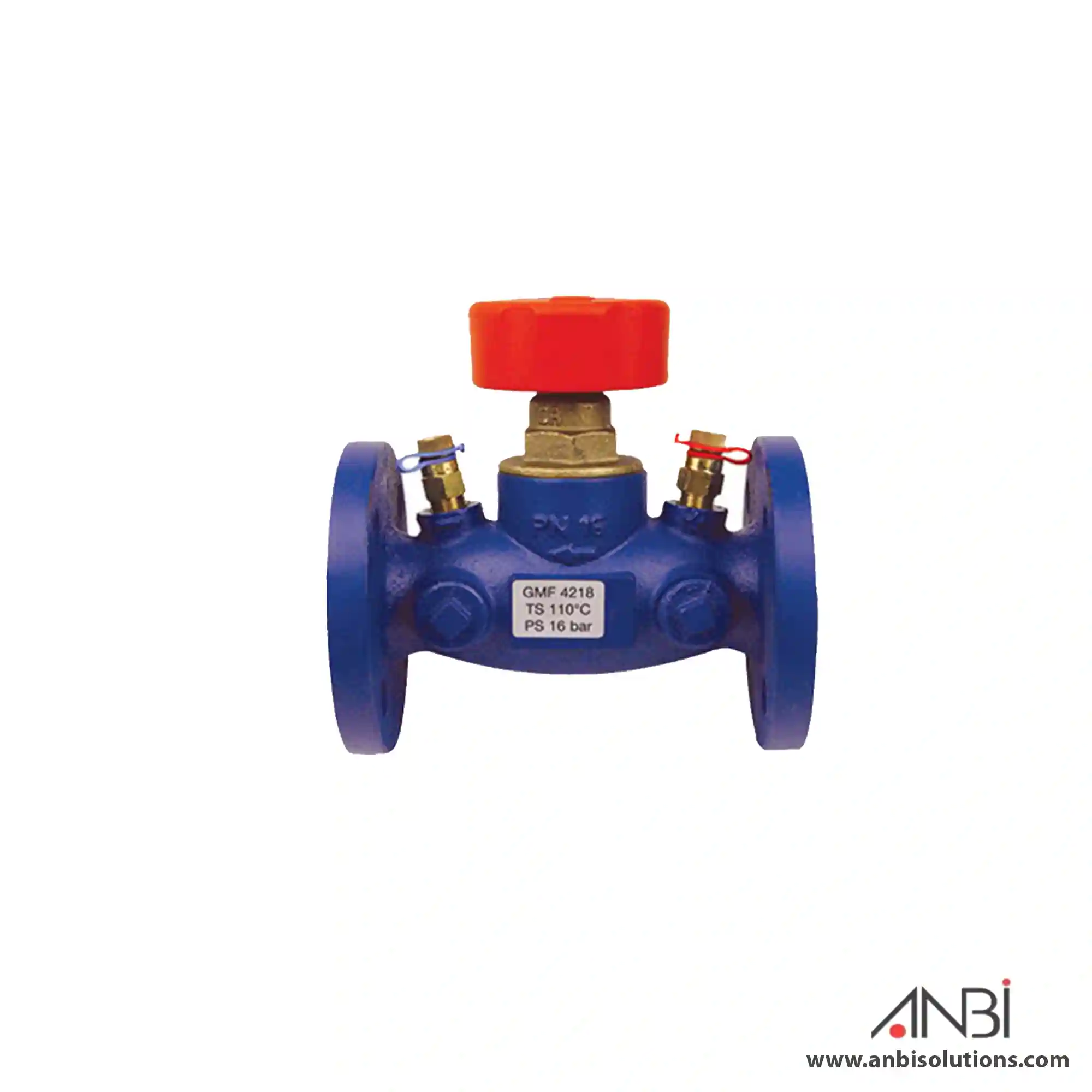

Double Regulating Valve CI Flange PN16 Stromax GMF Flange
Primarily used in injection or other circuits requiring a DRV for system balancing. The DRV allows the valve to be used for isolation and to be re-opened to its pre-set position to maintain the required flow rate.
1,664.54
17.50/month or 4 interest-free payments
For Bulk Orders You May Click The Link To Reach Us
Body made of cast iron GJL 250 according to EN 1561, flange according to EN 1092, PN 16, length according to ÖNORM EN-558-1, basic series 1, blue enamel coating.
Dezincification resistant brass upper part, with the non-rising spindle. Spindle seal by means of double O-Ring.
Two test points 1 0284 are mounted next to the handwheel.
The flanged upper parts are made of cast iron.
The pre-setting marker is fastened as a tag above the valve or pipe.
The setting of the respective valve is marked by cutting or breaking off the teeth at the figures for full and partial turns.
This permit checking and/or restoration of the original pre-setting made on the occasion of the system set-up after servicing without having to rely on documentation.
| Weight | 30.00 kg |
|---|---|
| Size | DN100, DN125, DN150, DN200, DN250, DN300, DN65, DN80 |
