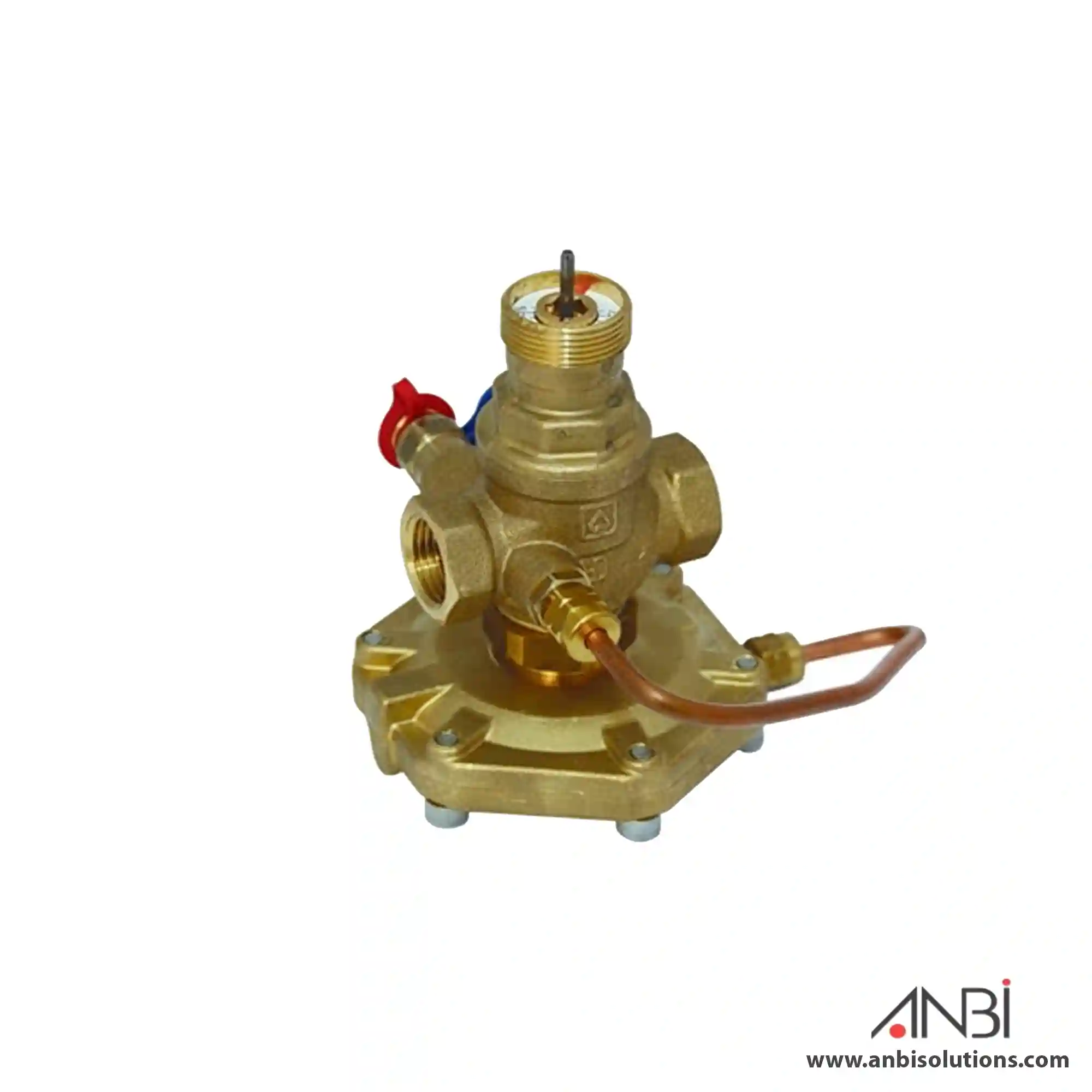

Herz-motorized flow controller PN16
HERZ is an Austrian company, which is recognized internationally. We deal with resource-friendly energy supply and ensure an energy-efficient creation of economic and convenient systems. HERZ products cover the entire market for the HVAC industry. All HERZ products are manufactured in EU countries according to European quality standards.
Features
Return mounted compact design, DZR brass body, Female thread version Rp to ISO228
Two test points for measuring the differential pressure across the valve.
Compact shape, the body of dezincification-resistant, with female thread.
Actuator mounting threaded connection M 28 x 1.5, control stroke 4.0 mm.
The actuating drive is not included.
The body is constructed from DZR Copper alloy with the diaphragm and seals being EPDM.The Pressure Independent Balancing Control Valve (PIBCV) is used in all heating and cooling systems with circulation pumps.The valve automatically maintains flow to the required part of the system at the set rate by measuring and immediately adjusting to any variation in pressure.
| Size | 15mm, 20mm, 25mm, 32mm, 40mm, 50mm |
|---|
