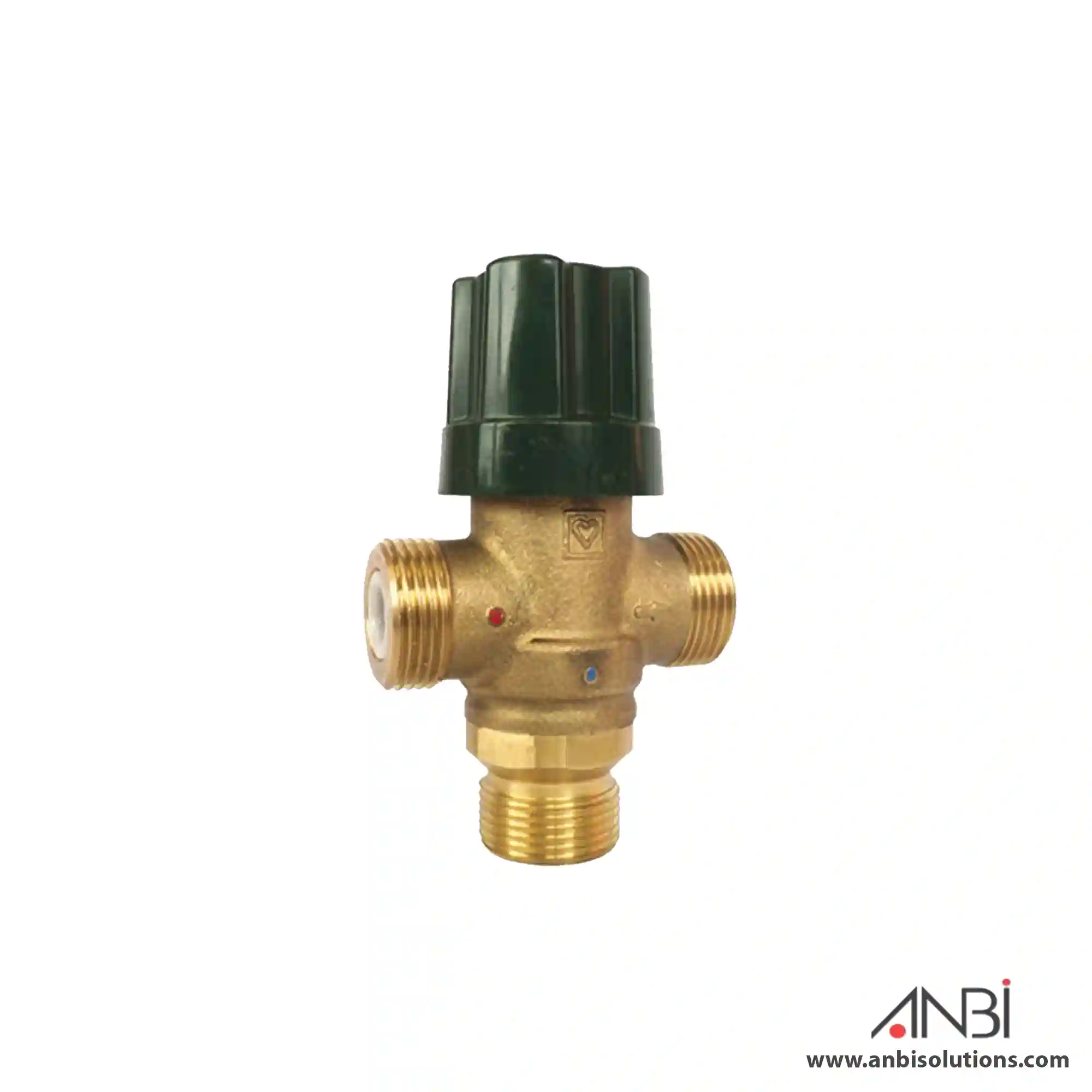

HERZ Thermostatic Mixing Valve TMV2 27766

HERZ-Mixing valve with two-port flow direction
25 l/min, 3 bar of water pressure, with water quantity min. 4 l/min, factory setting of mixing temperature 38–48 °C ± 2K mixing precision.Features and benefits
• Optimised thermostat technology for best control quality and longer durability
• Excellent temperature stability with a fast reacting thermostat to reduce the risk of uncontrolled high water temperature
• Designed for high flow-rates and for a stable outlet temperature
• Build-in with check valves in hot and cold water supply
• Body and parts in contact with water are made of dezincification resistant brass

Material
Body: DZR brass CC752S
Spring: Stainless steel 1.4310
Internal parts: DZR brass CW626N
Stem: DZR brass CW626N
Handweel: ABS
Sealing: EPDM

HERZ is an Austrian company, which is recognized internationally. We deal with resource-friendly energy supply and ensure an energy-efficient creation of economic and convenient systems. HERZ products cover the entire market for the HVAC industry. All HERZ products are manufactured in EU countries according to the European quality standards.
