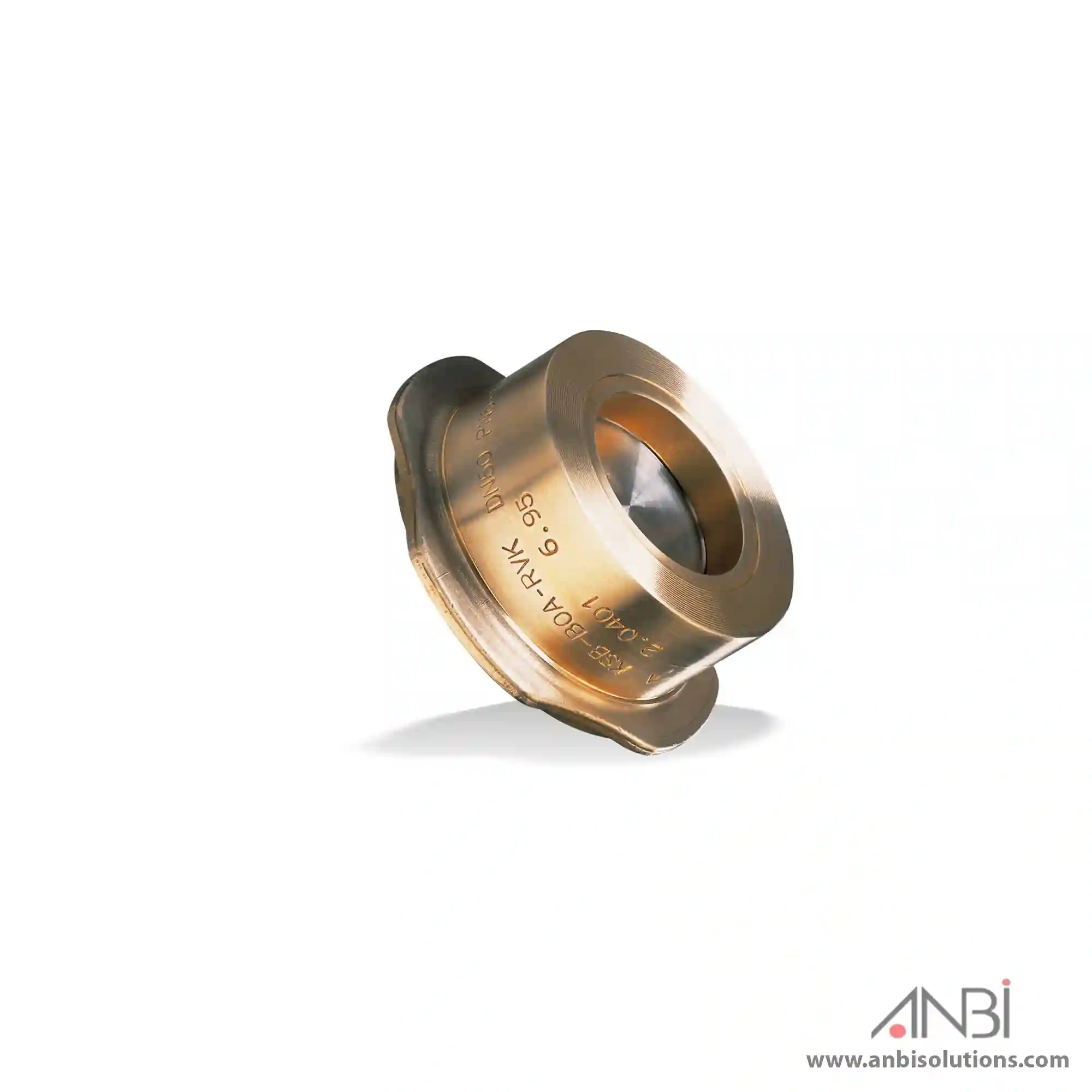

KSB Lift Check Valve Wafer BOA-RVK

Lift check valve to DIN/EN with the wafer-type body, centering aided by the body shape, shut-off by spring-loaded plate or valve disc guided by three stainless steel guiding pins. Low-noise designs with the plastic plate (DN 15-100) or valve disc with O-ring (DN 125-200), are maintenance-free.

Application
Industrial plants and heating systems, liquids and gases, hot-water heating systems, high-temperature hot water heating systems, heat transfer systems. Any limits given in the technical codes must be complied with. Not suitable for fluids liable to attack the materials used. Other fluids on request.

Main applications
Building services
HVAC
Heating / ventilation / air-condition
Industry engineering
Surface treatment

Design type
Non-return valves

Technical data
T max250 °C
DN max200
PN max16
