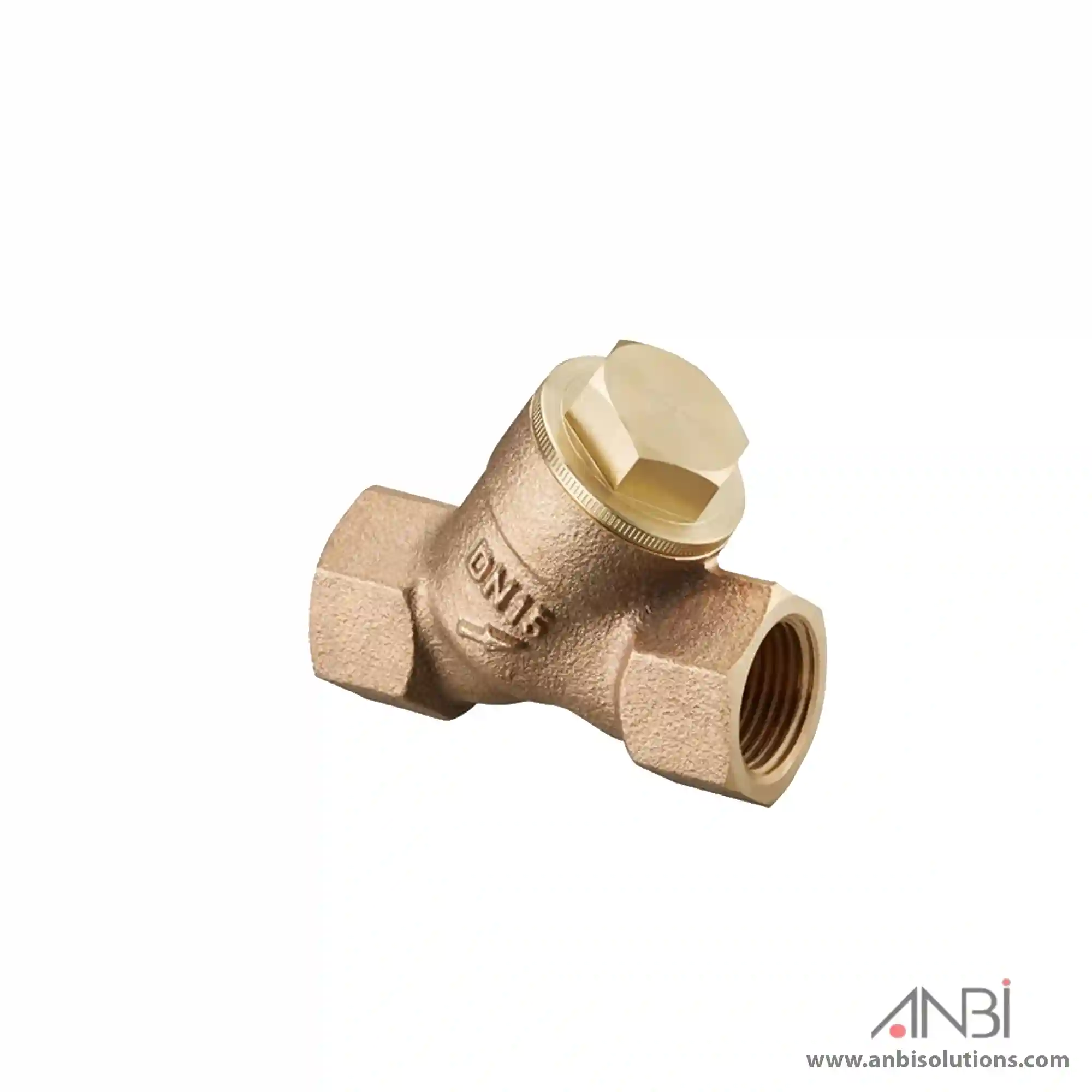

Oventrop Y type strainer PN 25, with simple wire basket 0.6 mm, bronze.
OVENTROP Y Strainer with female thread, oblique pattern model for vertical and horizontal installation. Replaceable wire baskets.
Bronze body, with wire basket made of stainless chromium steel, brass bonnet.
Wire basket: 100 meshes/cm² = 0.6 mm
Material: Bronze/brass
Surface: Unplated
max. operating pressure: 25 bar
min. operating temperature: -10 °C
max. operating temperature: 150 °C
Manufacturer: Oventrop GmbH & Co. KG
Subject to technical modifications without notice.
| Size | 15mm, 20mm, 25mm, 32mm, 40mm, 50mm |
|---|
