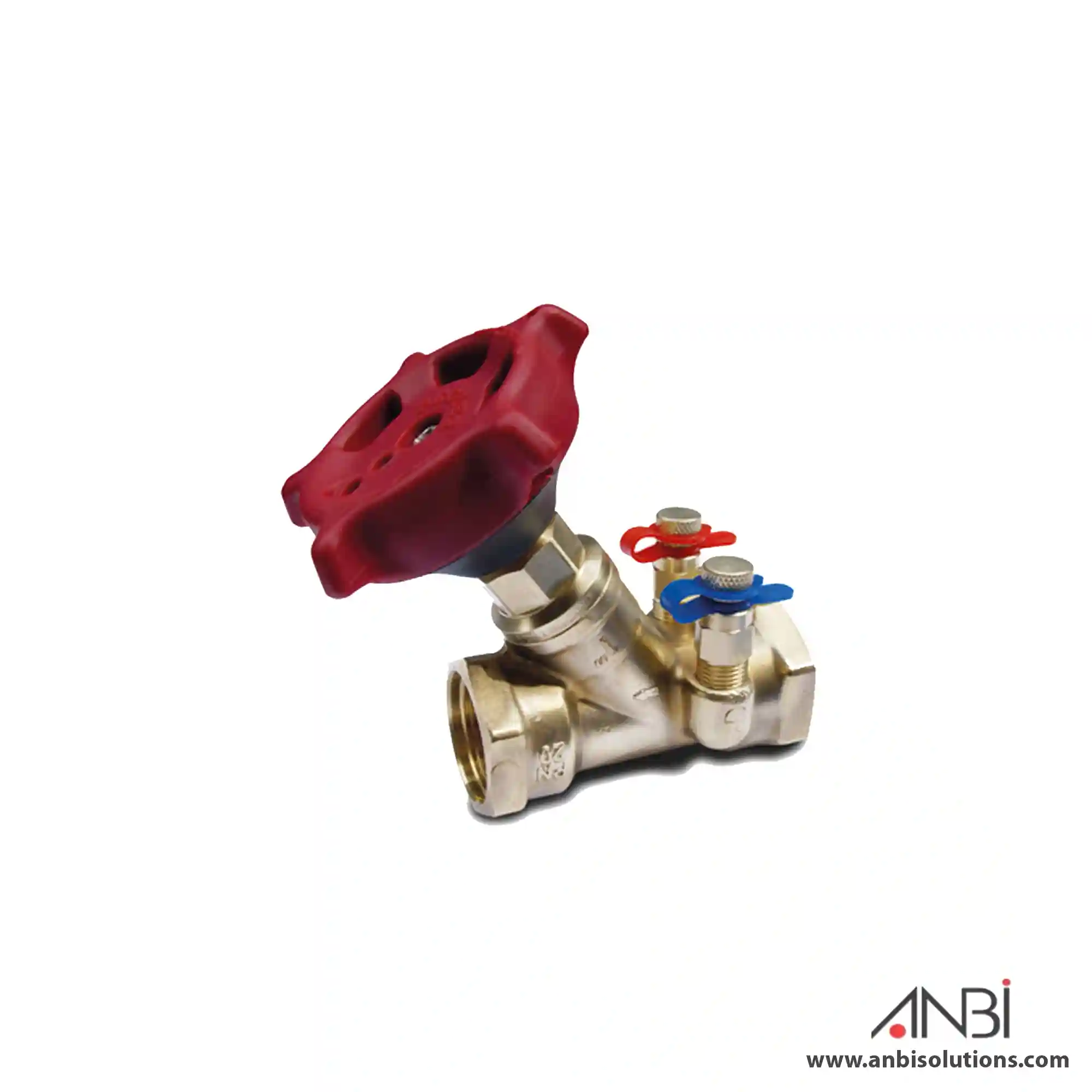

Double Regulating Valve (Drv), Dzr Brass Body. Xpress Union X Xpress End For Copper, Carbon/Stainless Steel
Peglers’ unique Integrated Piping System brings together valves, fitting, and pipes in one complete pipe-work system, with an emphasis on delivering heat-free jointing. IPS combines the best elements of modern connection and valve technology, with international quality approvals and cost-effective solutions for every project.
Materials
Component Material
Body GDCBr, BSEN 1982, CC 752S
Bonnet EBB, BSEN 12164, CW 617N
Spindle EBB, BSEN 12164, CW 617N
Disc EBB, BSEN 12164, CW 617N
Gland Packing Piece EBB, BSEN 12164, CW 617N
‘O’ rings EPTO
Orifice plate EBB, BSEN 12164, CW 617N
Circlip Carbon spring steel
Adjustment screw EBB, BSEN 12164, CW 617N
Test points DZR Brass
Seals EPTO
Handle 30% Glass-filled nylon 66
Set screw Brass
| Size | 1-1/2", 1-1/4", 1/2", 1", 2", 3/4" |
|---|
