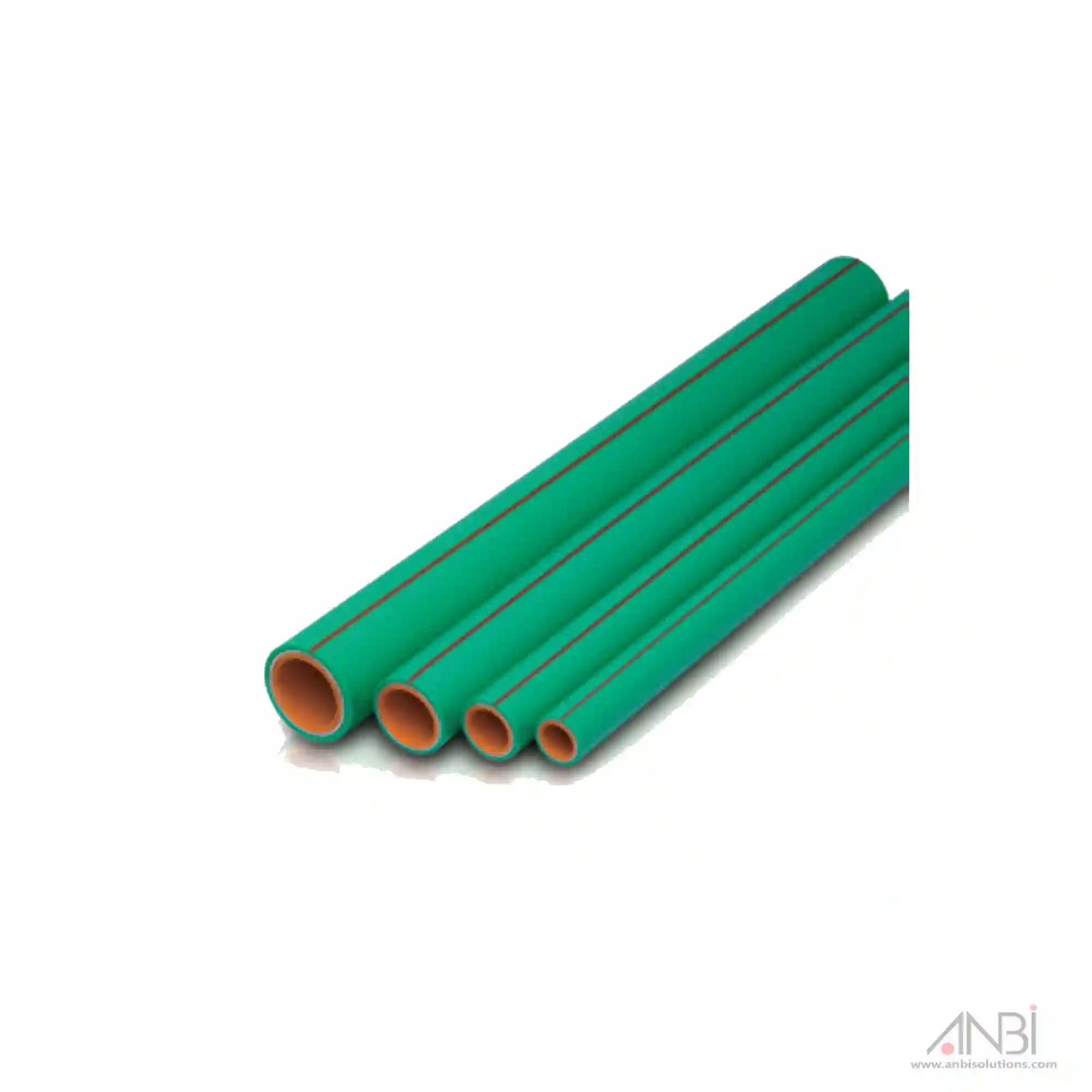

S-fusion PPR Multi-layer Pipes PPRAl-PPR(X)BW

We recommend using a pipe with butt-welded aluminum as it is more advanced technology than overlap-welded aluminum, allowing thicker aluminum with a seamless-welding connection, resulting in improved qualities like increased pipe durability. Outside and inside polymer layers are connected to aluminum by high-molecular adhesive layers.

The aluminum layer guarantees low thermal expansion and a 100% oxygen barrier. High-strength connection of polymer layers with aluminum defines the value of expansion, similar to solid-metal pipes’ characteristics. One of the main advantages of  PPR/Al/PPR  pipes is its simple and clean thermo-fusion connection with standard PPR fittings: no special treatment and preparations are needed, just cut and weld.

S-fusion outer layer thermo-fusion PPR/AL/PPR but welding composite pipe for cold and hot water transportation, central heating (Water working temperature up to 70°C, water short time high temperature up to 90°C, Nominal pressure up to PN. 2.5 MPa)

Product code Outside diameter, mm Wall thickness, mm Pipes Serial Water working pressure, MPa Quantity per package, pieces/ m (each piece 4 m)
PPR-Al-PPR (X)/BW-20×3.0/2.5 20 3 PPR/AL 2.5 160
PPR-Al-PPR (X)/BW-25×3.5/2.5 25 3.5 PPR/AL 2.5 100
PPR-Al-PPR (X)/BW-32×4.0/2.5 32 4 PPR/AL 2.5 60
PPR-Al-PPR (X)/BW-40×5.0/2.5 40 5 PPR/AL 2.5 48
PPR-Al-PPR (X)/BW-50×5.5/2.5 50 5.5 PPR/AL 2.5 32
PPR-Al-PPR (X)/BW-63×7.0/2.5 63 7 PPR/AL 2.5 20
PPR-Al-PPR (X)/BW-75×8.5/2.5 75 8.5 PPR/AL 2.5 12
PPR-Al-PPR (X)/BW-90×10.0/2.5 90 10 PPR/AL 2.5 8
PPR-Al-PPR (X)/BW-110×12.0/2.5 110 12 PPR/AL 2.5 8
