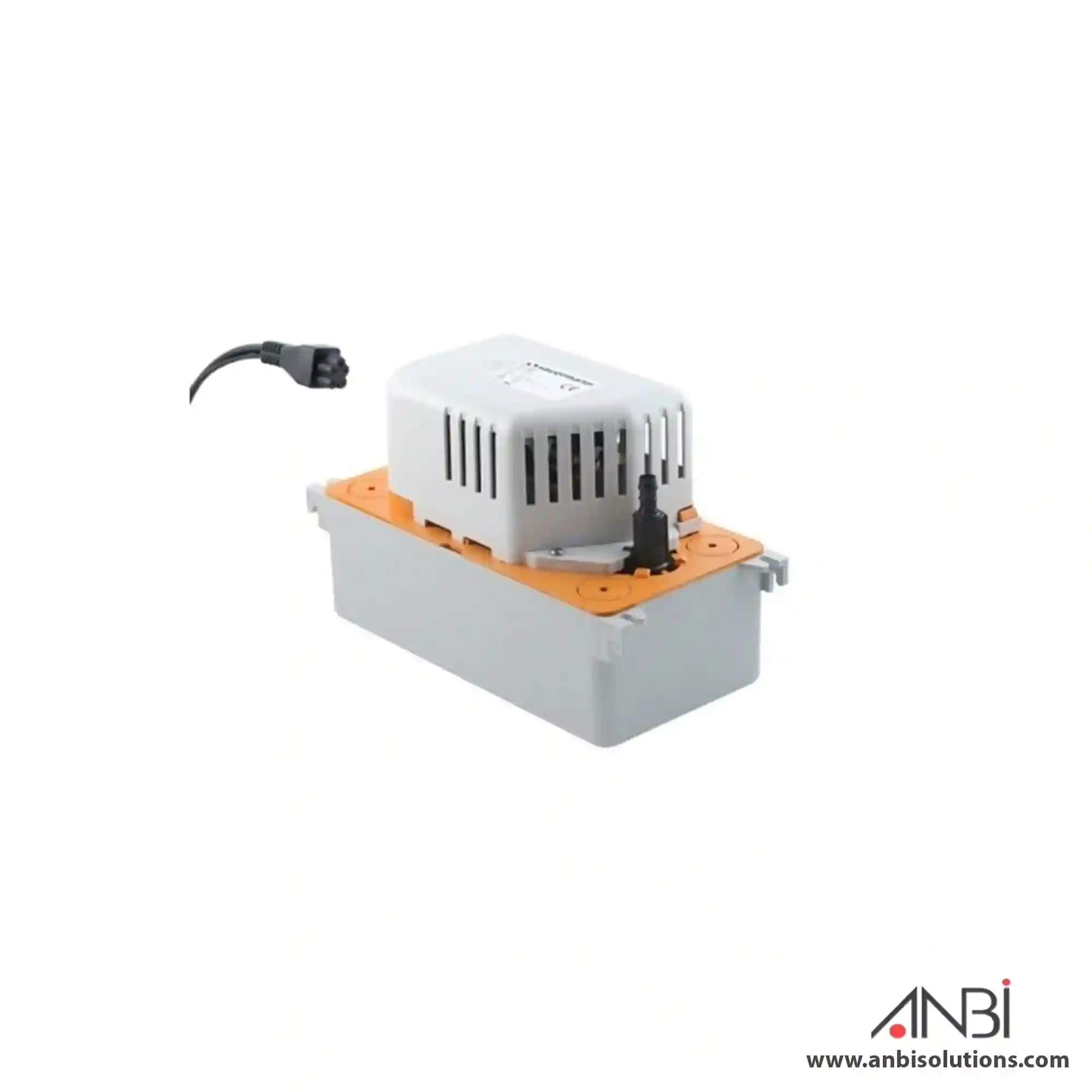

The Si-82 centrifugal pump is designed to be easily installed in any environment.
It is capable of evacuating up to 500l/h and suitable for air conditioning units and industrial refrigeration displays.
It also tolerates charged, high temperature and acidic condensates (pH>2.5) produced by gas condensing boilers.
TECHNICAL DETAILS
Max flow rate 132 gph , 500 l/h
Max discharge head 16 ft, 5 m
Max pressure 5.4 m
Insulation class Double insulation
Mains supply 230V ~ 50Hz – 70W – 0.67A
Operation conditions 30%: 3s ON – 7s OFF
Protection IP20
Max condensate temperature 65 °C
Max condensate acidity ph > 2.5
Tank volume 2 L
Master pack quantity 4
Safety switch NF 4 A resistive – 250V
Detection Integrated
Model Si 82 PACK 2
