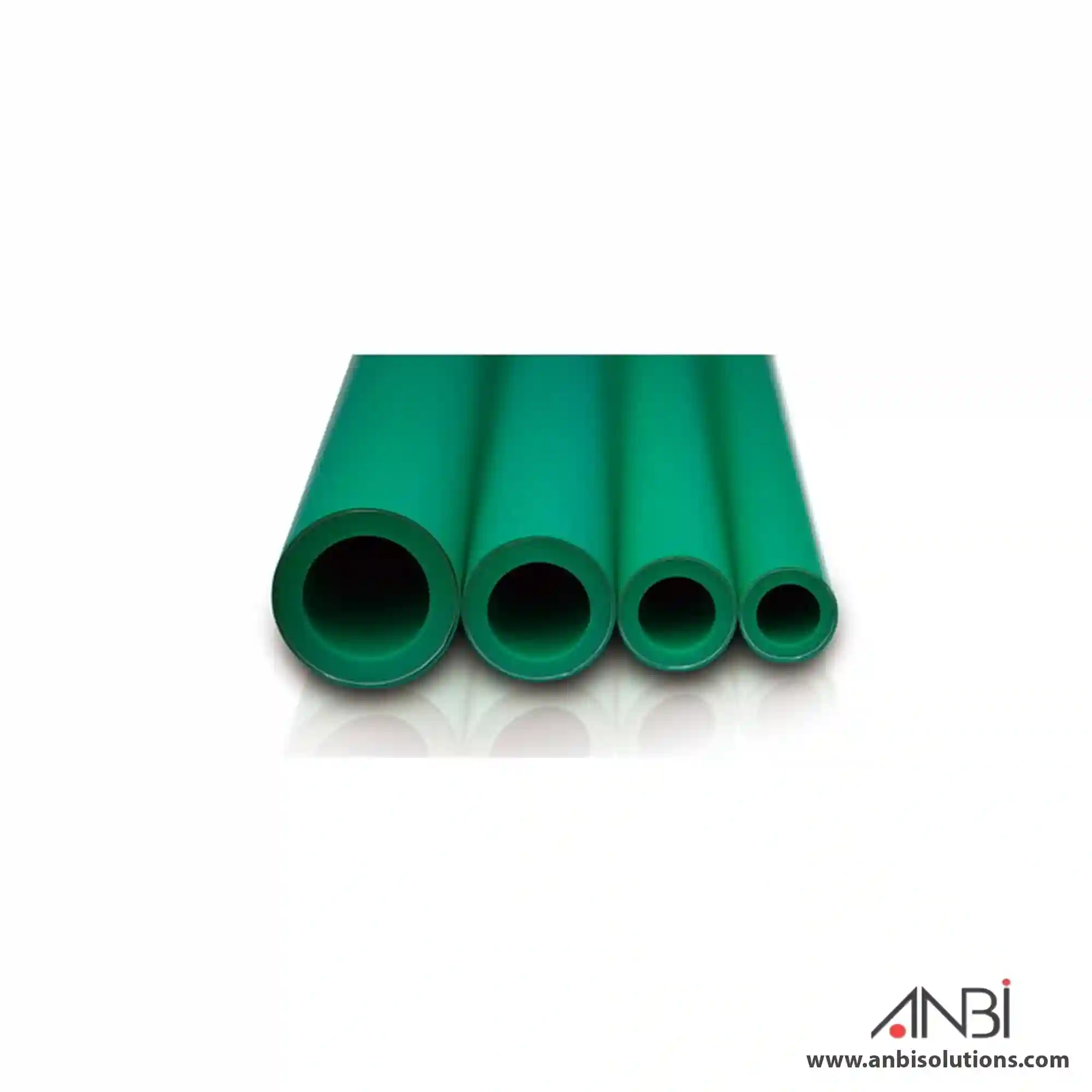

Stabi Composite Pipes PPR/AL/PPR

Stabi (PPR/Al/PPR) pipe is mechanically stabilized through the integrated aluminum layer. It is an extension range of PPR piping systems with better workability and lower thermal expansion. Pipe construction: homogeneous PPR inner pipe (according to EN ISO 15874 (2004) and DIN 8077/8078) with sealed aluminum layer and outer PPR cover layer.

The aluminum layer reduces the linear expansion coefficient to <0.035 mm/mK and protects inside PPR pipe preserving its properties and acting as an oxygen barrier: Stabi pipes can be welded with PPR fittings.

Main advantages in comparison with usual PPR pipes:

• Low thermal expansion α=0.03 mm/mK
• 100% oxygen barrier
• Increased supporting distance
• Better resistance to knocks
• High stability towards temperature and pressure

Application:

• Cold and hot water supply systems
• Potable water supply systems
• Heating systems
• Central air conditioning systems
• Water circulating and water supply
systems in swimming pools

STABI PPR/AL/PPR composite pipes for hot and cold water transportation and central heating (Water working temperature up to 70°C, water short time high temperature up to 90°C, S3.2 series (inner pipe), SDR 7.4, Nominal pressure up to PN. 2.0 MPa) – aluminum foil without perforation

Product code Outside diameter, mm Wall thickness, mm Pipes Serial Water working pressure, MPa Quantity per package, pieces/ m (each piece 4 m)
PAP (X) Stabi 20×2.8/3.7 20 2.8 S3.2 2 160
PAP (X) Stabi 25×3.5/4.5 25 3.5 S3.2 2 100
PAP (X) Stabi 32×4.5/5.5 32 4.5 S3.2 2 60
PAP (X) Stabi 40×5.6/6.7 40 5.6 S3.2 2 48
PAP (X) Stabi 50×6.9/8.0 50 6.9 S3.2 2 32
PAP (X) Stabi 63×8.7/9.9 63 8.7 S3.2 2 20
