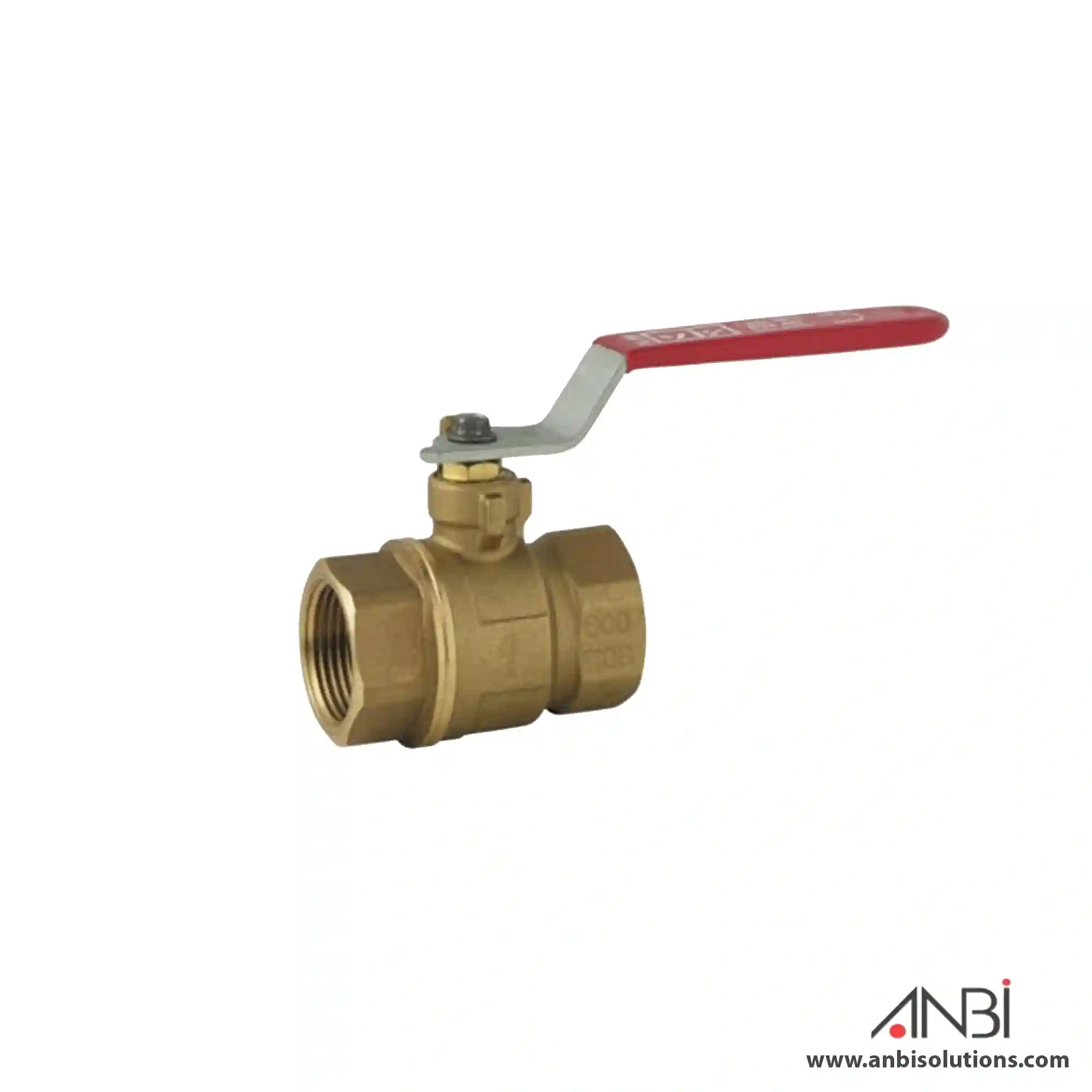

Bronze Ball Valve Threaded Ends
49.00
17.50/month or 4 interest-free payments
For Bulk Orders You May Click The Link To Reach Us
Full Port Bronze Ball Valve
Diameters from DN010 – ⅜” to DN080 – 3″
Threaded F/F (ISO 228/1)
(available on request with ASME B1.20.1 NPT threads)
Design according to MSS-SP110
Air testing according to EN12266-1
Blow-out proof stem, adjustable packing
With handle or butterfly (up to DN≤50)
VA and TR CU 010 compliant
PN40 for DN≤50 (Max 40bar up to 95°C, max 10bar at 185°C)
PN25 for DN≥65 (Max 25bar up to 95°C, max 10bar at 185°C)
Free of CE marking for DN≤32 (cat. according to Art. 4.3 Dir. 2014/68/EU)
Working conditions
Suitable for: water, 0°C to + 185°C
Suitable for: air, -10°C to +185°C
Not suitable for: gases and liquids group 1 (Dir. 2014/68/EU)
| Size | 15mm, 20mm, 25mm, 32mm, 40mm, 50mm |
|---|
No reviews yet for this product.
