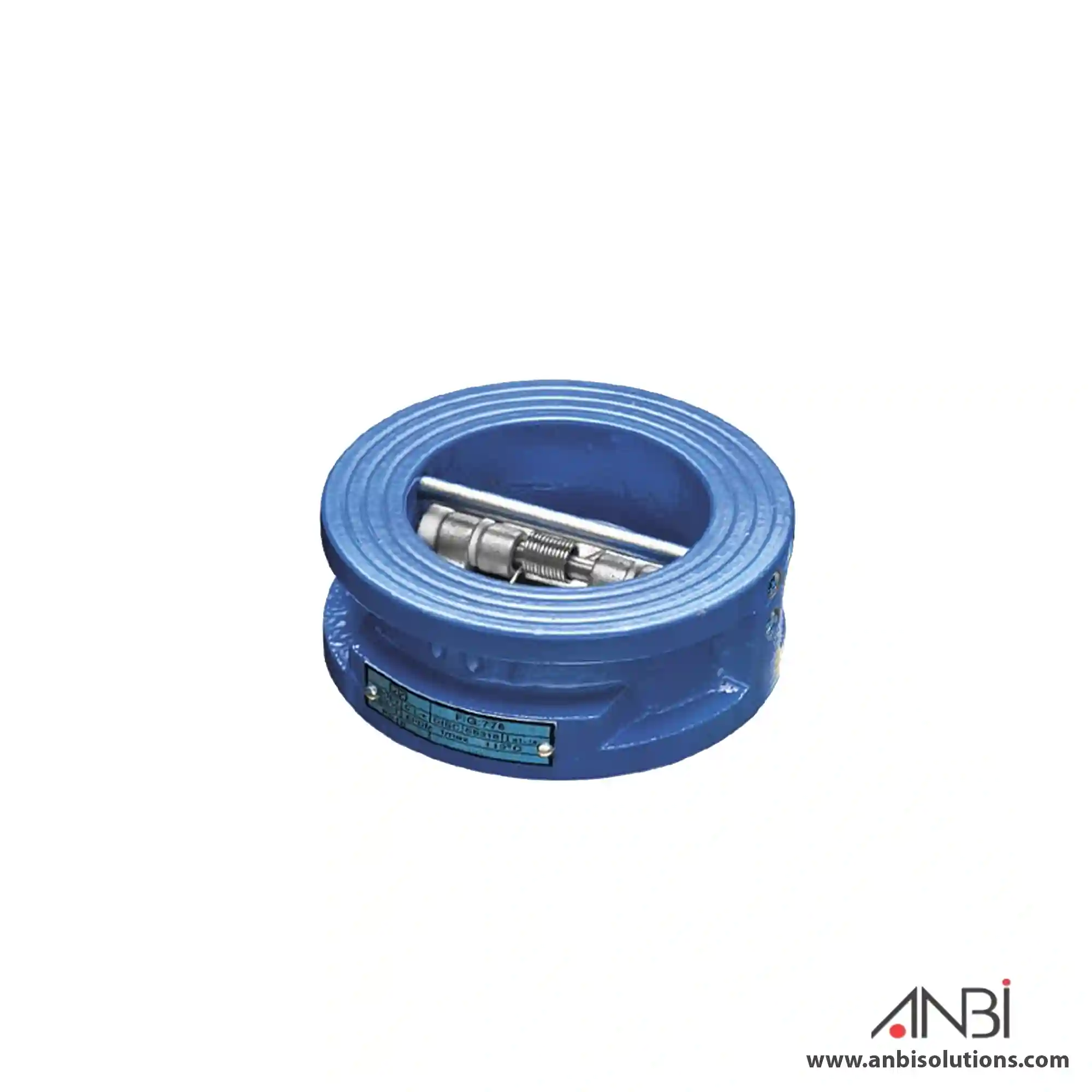

Cast Iron Dual Plate Check Valve, Wafer Type Stainless Steel Disc, PN16
VIR’s principal activity is the production and distribution of ball valves, both manual and actuated, balancing valves, gate valves and butterfly valves in brass, bronze, polypropylene and cast-iron for the distribution of water and gas to be applied in plumbing, conditioning, industrial and irrigation installations.
339.92
17.50/month or 4 interest-free payments
For Bulk Orders You May Click The Link To Reach Us
Cast Iron Dual Plate Check Valve, Wafer Type, Stainless Steel Disc, Pn16 To Bs21, Pn16
Dimensions from DN050 – 2 “to DN600 – 24”
Wafer type mountable on flanges type EN1092 PN16
Also suitable for PN10 flanges for DN≤250
Designed according to EN12334
Tested according to EN12266-1
Gauge according to EN558-1 series 16
Can be mounted horizontally or vertically (with the upward flow)
With lifting eyebolts for DN≥125
Minimum opening pressure 0.04 Bar
Conforms to CU CU 010
PN16
Exempt CE marking for DN≤300 (cat. According to Art. 4.3 Dir. 2014/68 / UE)
Operating conditions
● Suitable for: water, 0 ° C to + 110 ° C
● Not suitable for: gas group 1 and 2, liquids group 1 (Dir. 2014/68 / UE)
| Size | 100mm, 125mm, 150mm, 200mm, 250mm, 300mm, 350mm, 50mm, 65mm, 80mm |
|---|
