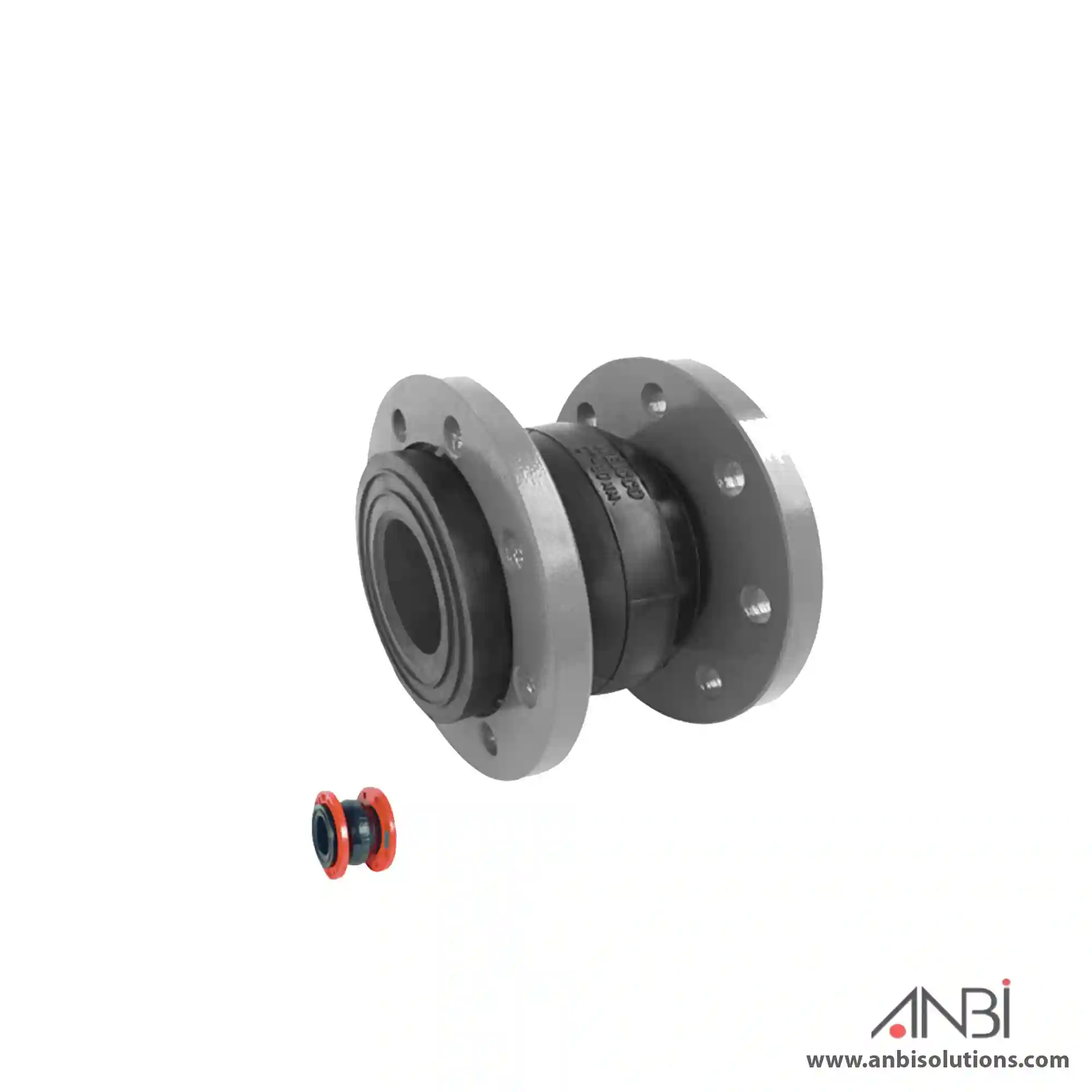

Flanged Spherical Pipe Joints (FJFF)

Spherical moulded expansion joints / flexible connectors with long radius arch bellow design that permits substantial movements in all planes. Designed to isolate noise and vibration in piping systems, cushion fluid pulsation and permit axial, transverse and angular movements. Provide superior noise attenuation and a number of other advantages over metal joints. The spherical shape ensures smooth fluid flow, resulting in a negligible pressure drop. Floating ductile iron flanges facilitate easy alignment. Bellows are reinforced with nylon fabric and spring-steel wire. Size: 50 to 500mm nominal, Pressure: 16Kg/cm2, Vacuum: 650mm, Temp: -20o to 105oC. Joints with higher pressure ratings are available on application.

SPECIFICATIONS
Construction
Bellow

Inner Tube Neoprene
Reinforcement Multi-ply Nylon tire cord fabric and spring-steel wire
Outer Cover Neoprene
Flanges Steel, epoxy powder coated

Drilled to BS4504 PN16
Performance Data
Working Pressure 16 kg/cm2
Vacuum 650 mmHg
Temperature Range -20oC to 105oC
Burst Pressure appx. 4 times working pressure
Working Fluids Water, Weak Acids / Alkalies, Air

In HVAC chilled/hot water piping – risers, circulation lines, across building expansion joints.

Process Piping, Power Plants, Water Distribution etc.
