Strong Power, Easy Charging,
Strong power, easy charging under large back pressure
The patent mechanism ensures easy charging under low temperature
Configuration of pressure relief protection, ensure safety operation
Built-in thermal protection device effectively prevents overloading
1,320.00
17.50/month or 4 interest-free payments
For Bulk Orders You May Click The Link To Reach Us
Product Description

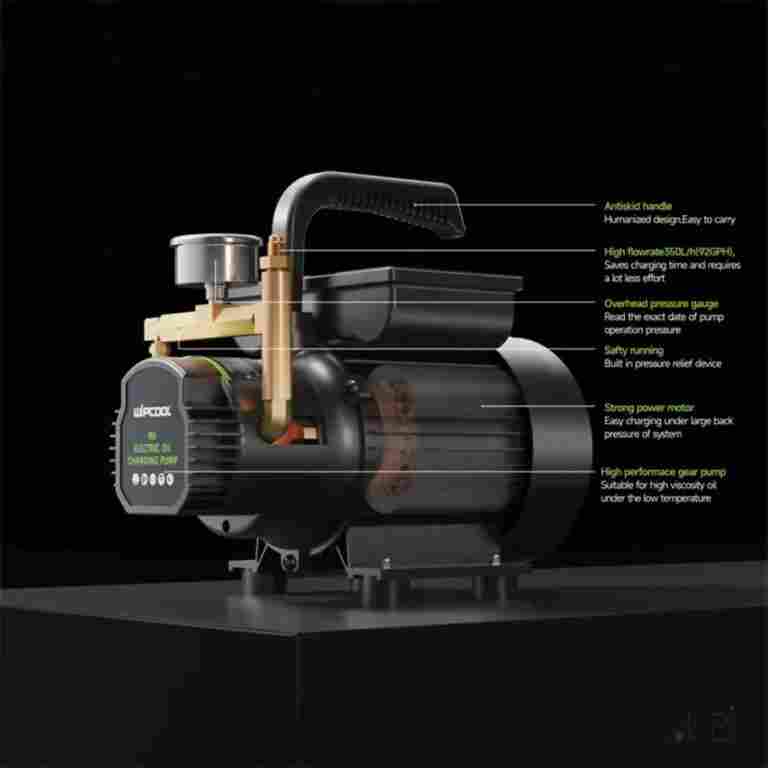

R6 is a heavy-duty refrigeration oil transfer pump that is ideal for charging compressor oil into large HVAC systems.
With a 3/4 HP electric motor directly coupled to a high displacement gear pump, the different viscosity oil(even the high viscosity in low temperature) can be pumped into your system even while in operation.
Built-in thermal-overload protector for effectively preventing overload and a ball-type check valve is installed inside of the pump to prevent oil or refrigerant from flowing back in case of a power failure or breakdown.
Keep the system in a safety situation. In addition, an overhead pressure gauge was installed to make the easy to read the exact operation pressure. So R6 is the ultimate solution for refrigeration oil charging.
| Model | R6 |
| Voltage | 230V~/50-60Hz or 100-120V~/50-60Hz |
| Motor Power | 3/4HP |
| Pump to Against Pressure(Max.) | 25bar (362psi) |
| Flow Rate(Max.) | 350L/h |
| Hose Connect | 1/4″ & 3/8″ SAE |
