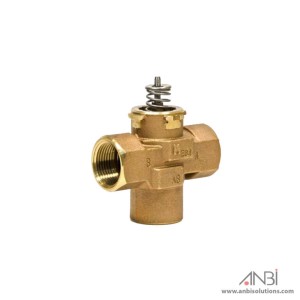

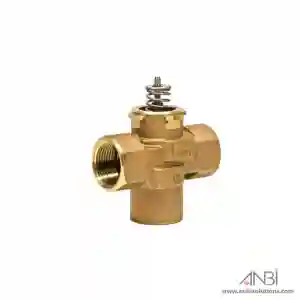

HONEYWELL VCZND 1-1/4Inch 3-Way Female NPT VC Cartridge Cage Valve

Three-way Cartridge Cage Valves are intended for hydronic applications in a normal indoor environment to control the flow of hot/chilled water-glycol solution up to 60% concentration. These valves are designed for zone control of heating/cooling systems.

The VC hydronic valve consists of a valve body and replaceable characterized cartridge assembly. Depending on the valve model selected, they can be used with a VC2114 or VC8114 series actuator to provide on-off flow control, or with a VC6930 or VC7930 series, actuator to provide proportional flow control. Two-way bodies may be plumbed in either direction. Three-way bodies may be used in either diverting or mixing applications.

Features
Quick open and linear flow characteristics are available
Mixing or diverting application
A-AB-B body pattern
7000-series valves for floating and modulating non-fail-safe applications
6000-series valves for two-position control
High close-off rating independent of Cv
Available with a variety of North American and international pipe fittings
No tools are required for actuator installation or removal
Actuator removal does not require a draining system
Service is by replacement of cartridge, not valve body
Cartridge replacement rebuilds valve to factory-new condition
