Suitable for domestic water services, heating & Air-Conditioning plants, Compressed Air Systems. It can be installed in any position: VERTICAL, HORIZONTAL, OBLIQUE.
110.00
17.50/month or 4 interest-free payments
For Bulk Orders You May Click The Link To Reach Us

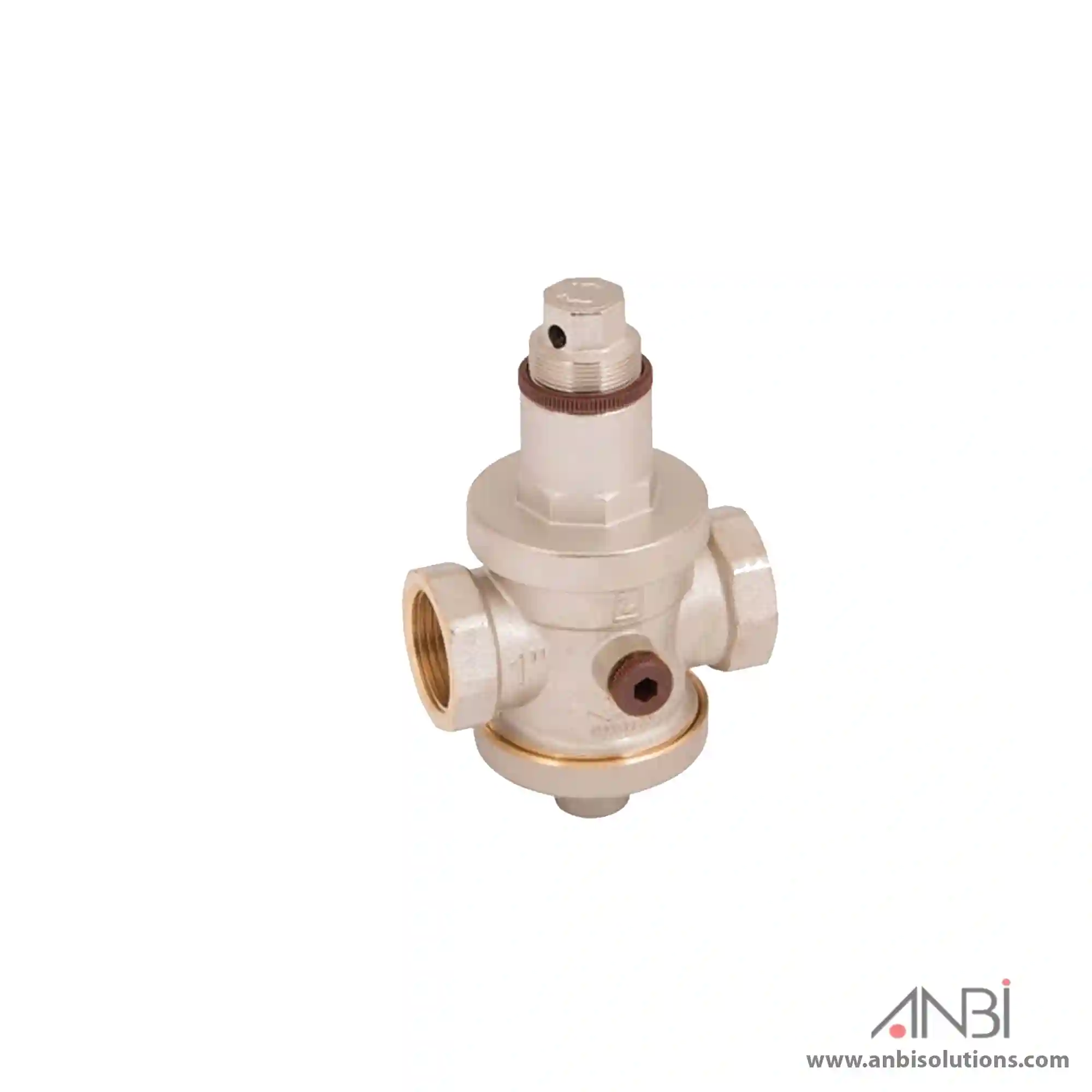

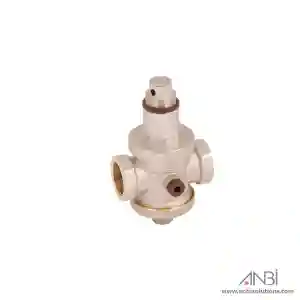

This valve reduces the pressure of the water that goes through it and is used to obtain a regulated and constant value at its outlet. It is installed at the water mains (for a bungalow as for a flat). It protects the whole installation from problems due to excess pressure: noises in the pipes, water hammer, splashes, premature wear of household electrical appliances and taps. The pressure reducing valves are completely automatic.
Compensated operation
Female/female threads
Body in nickel-plated brass
Minimum and maximum working temperatures: 0°C,
Maximum inlet pressure: 25bar.
Outlet pressure can be adjusted: 1/2” – 3/4” – 1” between 1 and 5,5 bar; 1”1/4 through 4” between 1 and 6 bar.
Factory preadjustment 3 bar.
Outlet pressure gauge connection 1/4” on both sides.
Threads ISO228 (equivalent to DIN EN ISO 228 and BS EN ISO 228).
Available also with NPT thread in the sizes 2”1/2 – 3” – 4”.
Quality:
NF – 1/2″,3/4″
| SIZE | PRESSIONE | CODE | PACKING |
| 1/2” (DN 15) | 25bar/362.5psi | 1430012 | 1/34 |
| 3/4” (DN 20) | 25bar/362.5psi | 1430034 | 1/34 |
| 1” (DN 25) | 25bar/362.5psi | 1430100 | 1/18 |
| 1”1/4(DN32) | 25bar/362.5psi | 1430114 | 1/9 |
| 1”1/2(DN40) | 25bar/362.5psi | 1430112 | 1/9 |
| 2” (DN 50) | 25bar/362.5psi | 1430200 | 1/8 |
| 2”1/2 (DN 65) | 25bar/362.5psi | 1430212 | 1/6 |
| 3”(DN80) | 25bar/362.5psi | 1430300 | 1/4 |
| 4” (DN 100) | 25bar/362.5psi | 1430400 | 1/3 |
| Size | 1-1/4", 1/2", 1", 3/4" |
|---|
