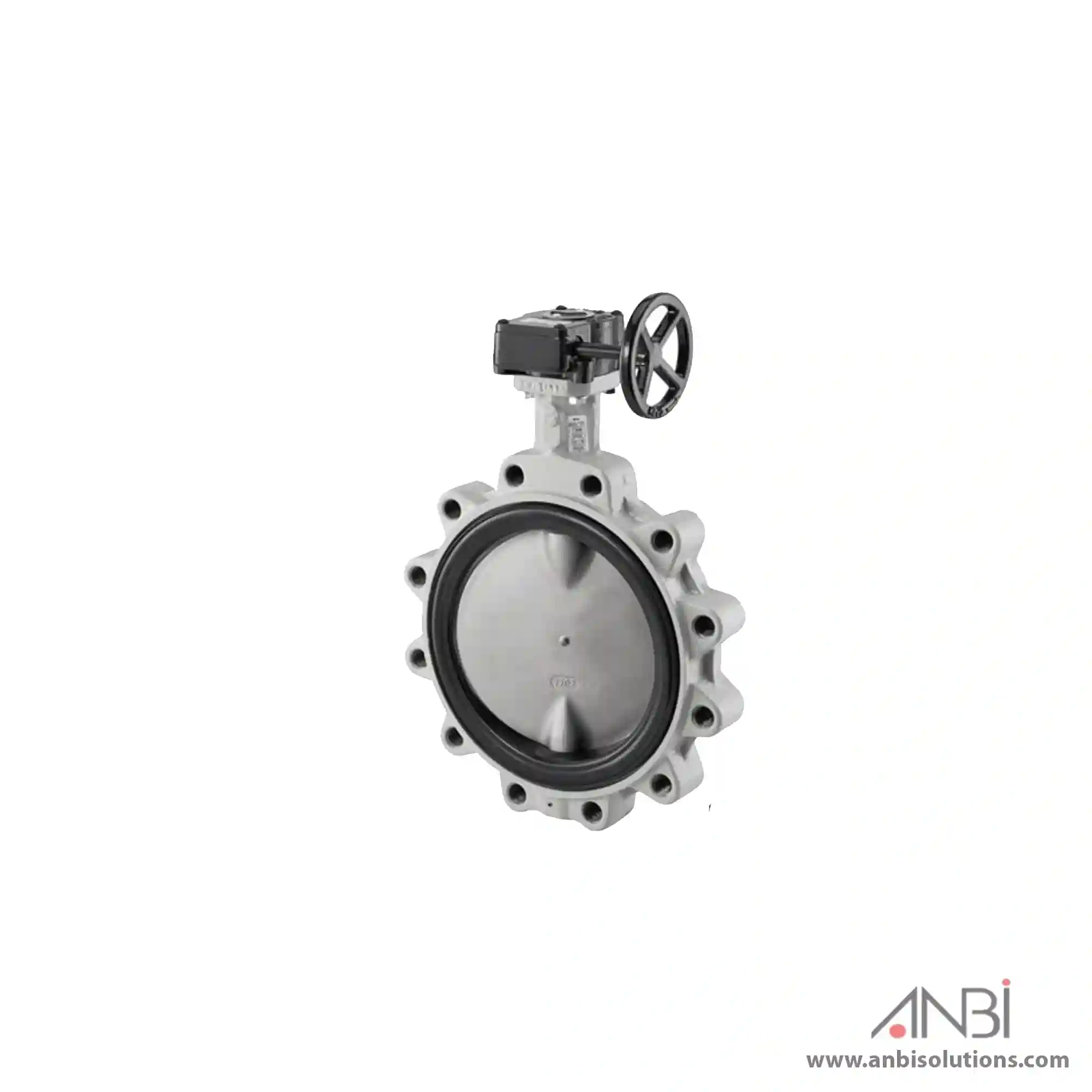

Oventrop Lugged Butterfly Valve PN 16 Gear Operated, S.S. DISC, EPDM SEAT, Nodular Cast Iron
1,904.45
17.50/month or 4 interest-free payments
For Bulk Orders You May Click The Link To Reach Us
OVENTROP Lugged butterfly valve PN 16 with EPDM liner
Application: BS 5155 Water between -10 °C and +110 °C and general applications. Not suitable for gas and hydrocarbons.
Connection for actuators according to ISO 5211.
Body: GJS-500 (GGG-50) nodular cast iron Stem: AISI420 stainless steel Disc: CF8M AISI316 stainless steel Liner: EPDM
Lugged pattern, Gear operated
max. operating pressure: 16 bar
min. operating temperature: -10 °C
max. operating temperature: 110 °C
Manufacturer: Oventrop GmbH & Co. KG
Subject to technical modifications without notice.
| Size | 150mm, 200mm, 250mm, 300mm |
|---|
