These valve actuators are available in voltage ranges from 12 volts up to 240 volts in both AC and DC. Standard features include a manual override, LED power on/diagnostic light, and DIN plug connectors for easy wiring.
0.00
17.50/month or 4 interest-free payments
For Bulk Orders You May Click The Link To Reach Us

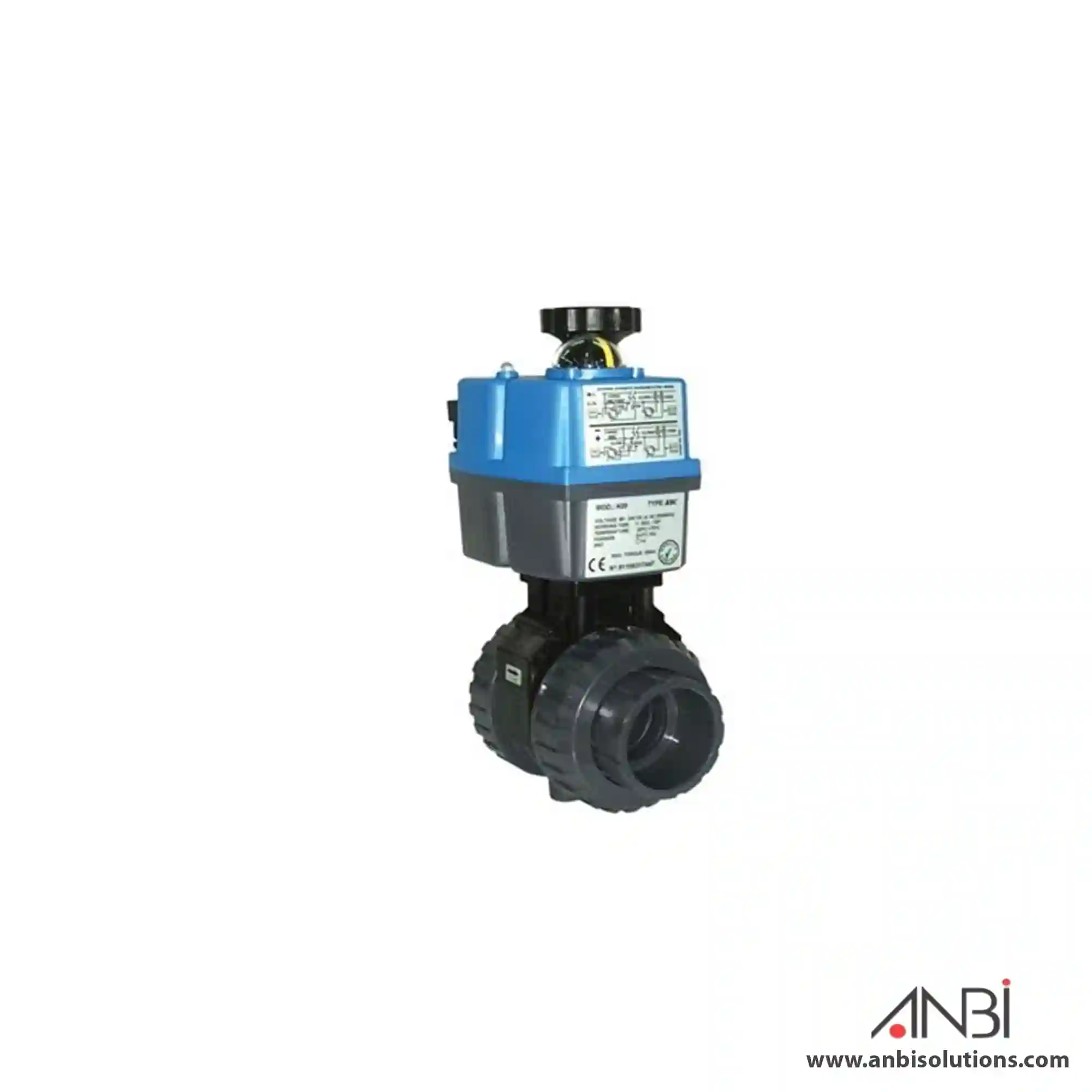

An electric actuator is used to open and close the PVC ball valve.
Concept & Typical Application
• The actuator operates by means of a motor switched on by electrical signals.
• No need for compressed air installation or electro valve.
• Indicated for applications with one or a few actuators.
• Operation time medium/high (min. 7-8 s), effective to avoid water hammers.
• Reduced weight and dimensions.
• Optional accessories: visual position indicator, manual control, safety block, torque limiter, digital positioning system.
• Not indicated for environments with explosion possibilities, very wet or saline ones.
• Life: 20.000 guaranteed cycles.
Electric Actuator Specs
• Electric actuators J+J and Valpes.
• Available voltages:
– 12-48 V AC-DC
– 80-240 V AC-DC
VALPES
– 12-24 V AC-DC
– 115 and 230 V AC
• Manual override and visual position indicator.
• Torque limiter.
• BSR Safety Block.
• Digital Positioner System. 4-20 mA ó 0-10 V.
