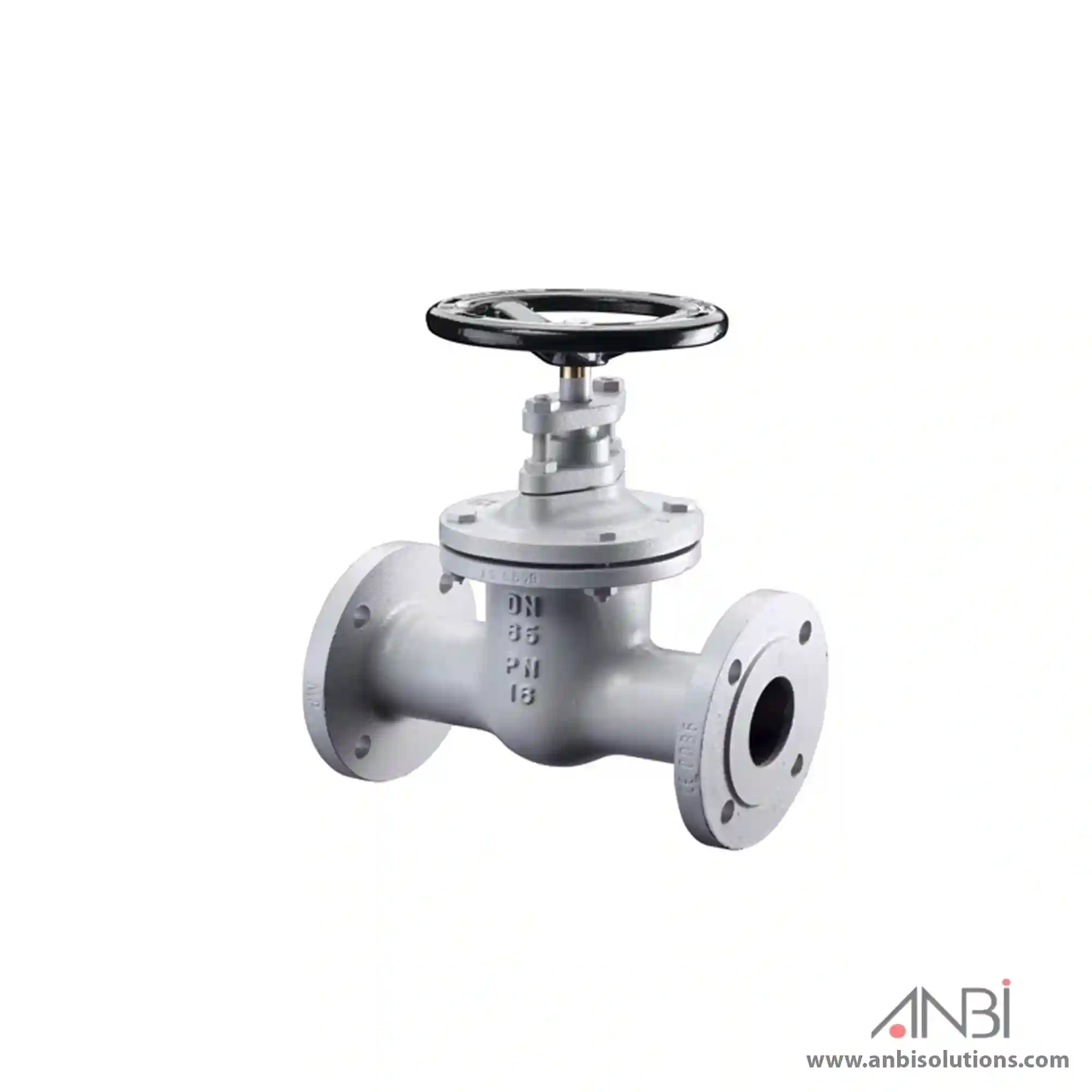

Oventrop gate valve “Hygate AFC” PN 16, with isolating facility, flanged connection both ports, cast iron
1,902.85
17.50/month or 4 interest-free payments
For Bulk Orders You May Click The Link To Reach Us
OVENTROP Gate valve PN 16 cast iron for non-aggressive fluids up to 120°C. Body, bonnet and stuffing box assembly made of cast iron GG 25, stem and valve seat made of brass, asbestos free seal. Flanges according to DIN 2501 PN 16 and hole circle according to BS 4504 PN 16.
Material: Cast iron
max. operating pressure: 16 bar
min. operating temperature: -10 °C
max. operating temperature: 120 °C
Manufacturer: Oventrop GmbH & Co. KG
Subject to technical modifications without notice.
| Size | 100mm, 125mm, 150mm, 200mm, 250mm, 300mm, 65mm, 80mm |
|---|
