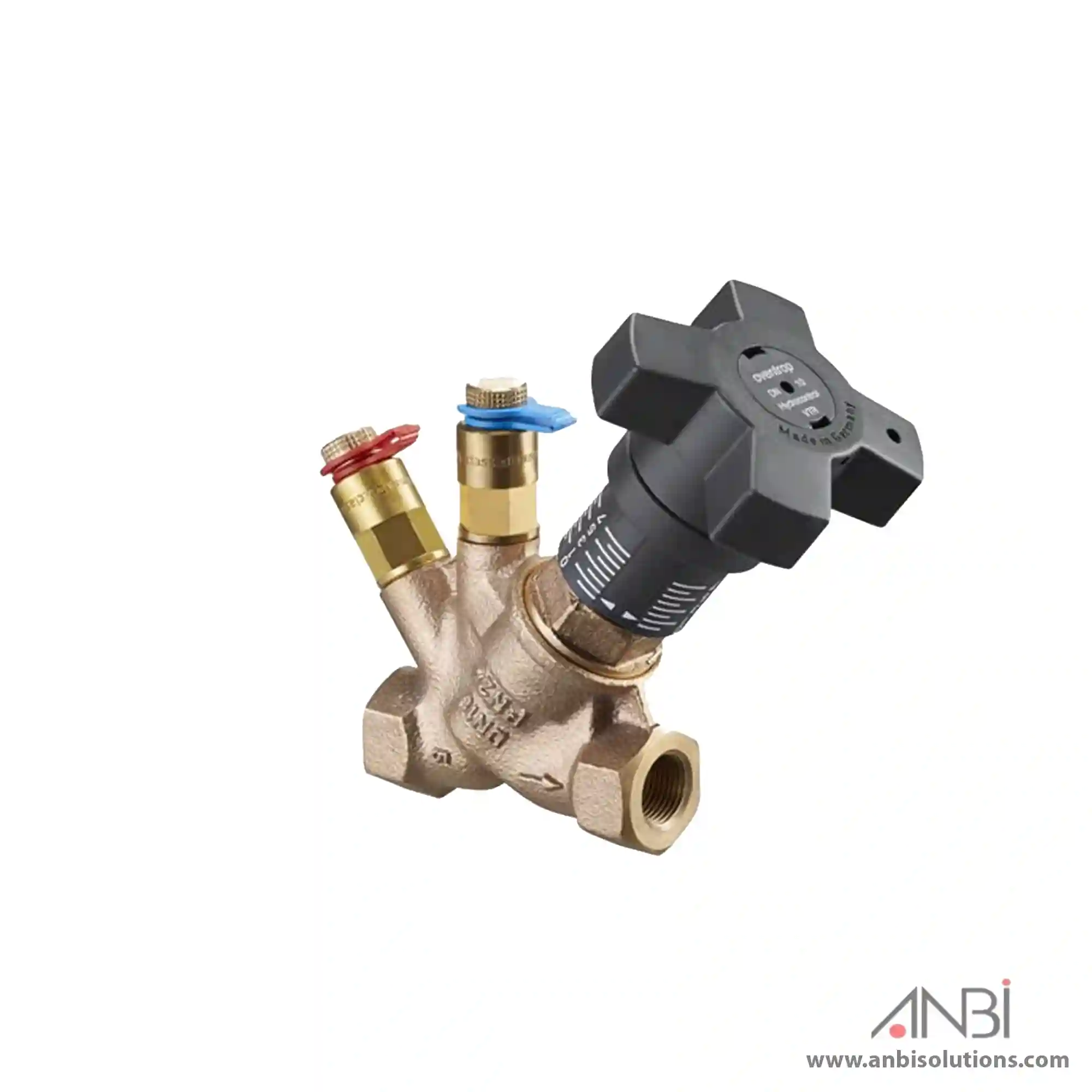

OVENTROP- Hydrocontrol VTR Bronze balancing valve PN 25

Oblique pattern model with secured, infinitely adjustable fine presetting controllable at any time. Optical display of the presetting irrespective of the position of the handwheel. All functioning components in one plane. Installation in the supply and the return pipe.

Valve body and bonnet made of bronze, stem and valve disc made of brass resistant to dezincification (DZR), a disc with PTFE seal, maintenance-free stem seal due to double O-ring.

With mounted accessories set no. 2 = 2 pressure test points 1/4”.
Both ports female thread according to EN 10226.

Material: Bronze
Surface: unplated

max. operating pressure: 25 bar
min. operating temperature: -20 °C
max. operating temperature: 150 °C

Item no.: 1060204, 1060206, 1060208, 1060210, 1060212, 1060216
EAN: 4026755125078, 4026755125085, 4026755125092, 4026755125108, 4026755125115, 4026755125122

Double regulating and commissioning valve “Hydrocontrol VTR” PN 25 bronze, both ports female, 2 pressure test points

Manufacturer: Oventrop GmbH & Co. KG
Subject to technical modifications without notice.
