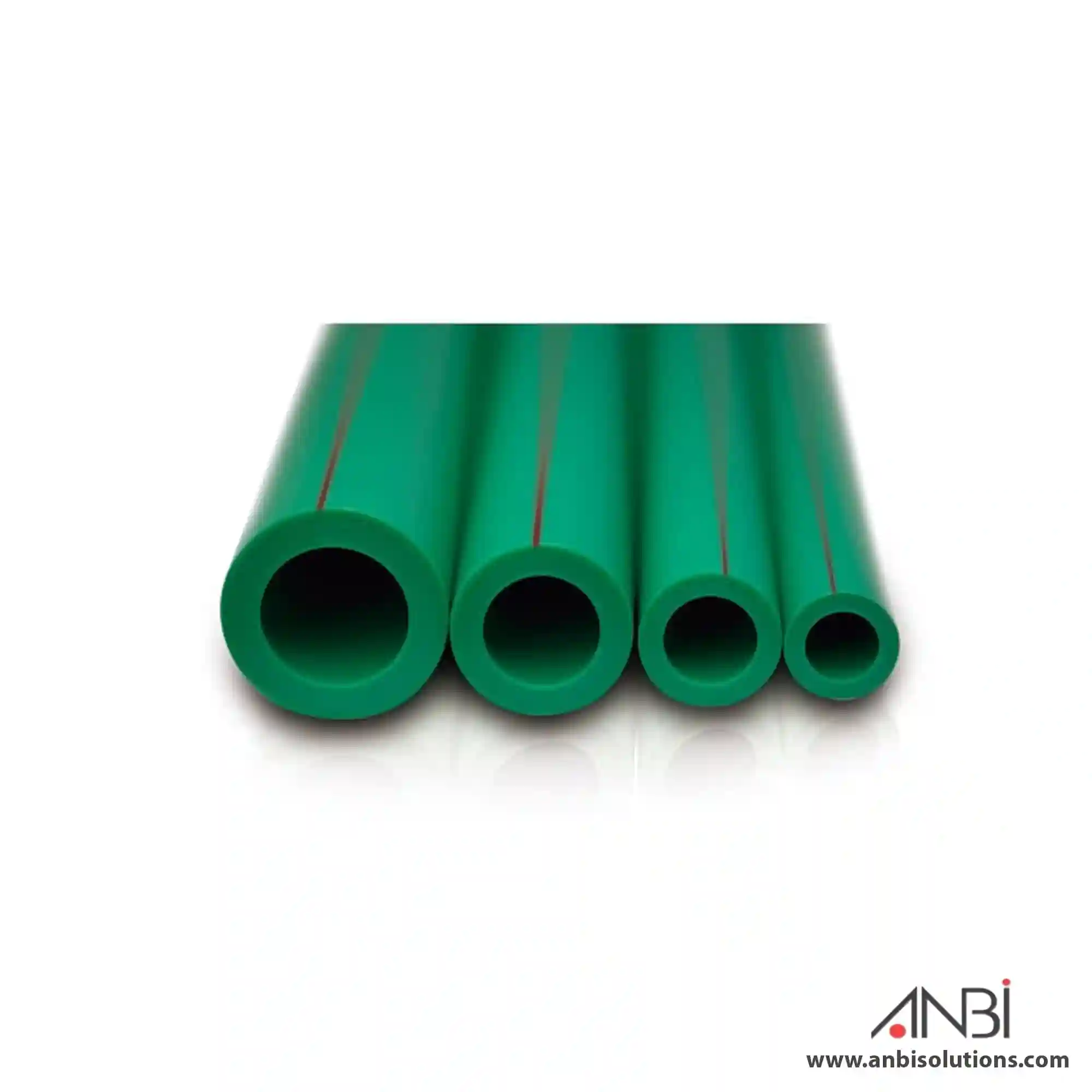

Singe Layer PPR Pipe PN2 MPA

Single-layer PPR pipes are produced by the extrusion method.

PPR pipes for hot, cold and drinking water transportation (Water working temperature up to 70°C, water short time high temperature up to 90°C, S2.5 series, SDR 6, Nominal pressure up to PN. 2.0 MPa)

Product code Outside diameter, mm Wall thickness, mm Pipes Serial Water working pressure, MPa Quantity per package, pieces/ m (each piece 4 m)
PPR-HW(X)/S2.5/16×2.7 16 2.7 S2.5 2 200
PPR-HW(X)/S2.5/20×3.4 20 3.4 S2.5 2 160
PPR-HW(X)/S2.5/25×4.2 25 4.2 S2.5 2 100
PPR-HW(X)/S2.5/32×5.4 32 5.4 S2.5 2 60
PPR-HW(X)/S2.5/40×6.7 40 6.7 S2.5 2 48
PPR-HW(X)/S2.5/50×8.3 50 8.3 S2.5 2 32
PPR-HW(X)/S2.5/63×10.5 63 10.5 S2.5 2 20
PPR-HW(X)/S2.5/75×12.5 75 12.5 S2.5 2 12
PPR-HW(X)/S2.5/90×15.0 90 15 S2.5 2 8
PPR-HW(X)/S2.5/110×18.3 110 18.3 S2.5 2 8
PPR-HW(X)/S2.5/125×20.8 125 20.8 S2.5 2 4
PPR-HW(X)/S2.5/140×23.3 140 23.3 S2.5 2 4
PPR-HW(X)/S2.5/160×26.6 160 26.6 S2.5 2 4
