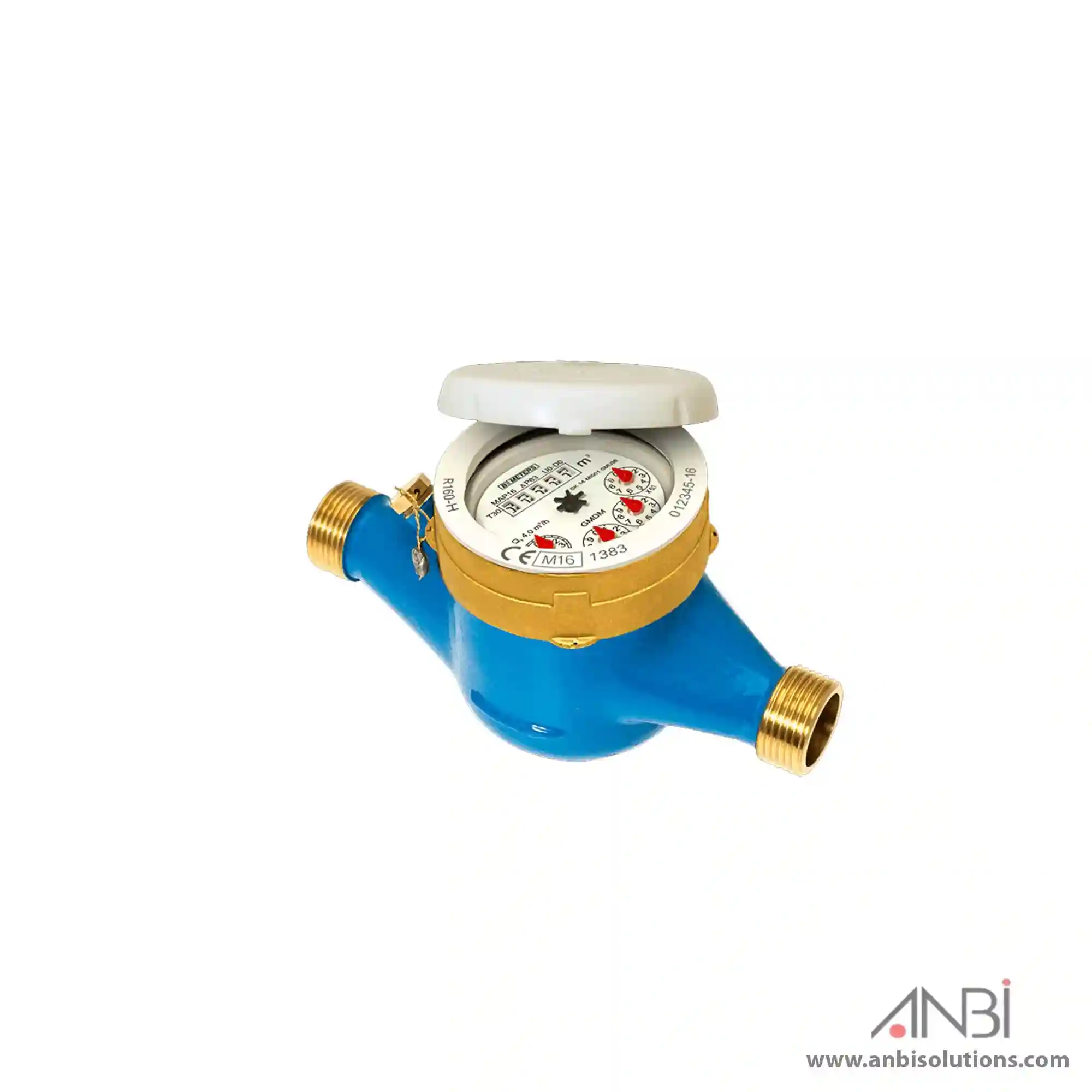

BMETER Water Meter Threaded GMDM

Multi-jet, dry dial, direct reading. Made in the version for cold water (30°C) in the diameters 15 to 50 mm (1/2″÷2″).

Risks of corrosion and sedimentation free. Anti-magnetic protection upon request. Long durability and elevated precision are guaranteed.

Approved according to MID standards up to R160H.

The multi-jet water meter is used both in the domestic and the industrial field. The principle of operation is to force the passage of the inlet water flow through a series of ducts open in a capsule, called distributor, containing the turbine. The entrance of the water through the ducts generates a series of symmetrical jets that impact the turbine keeping it in perfect balance.

There are three multi-jet water meter types:
– Wet dial meters with the reading mechanism completely immersed in the water and direct transmission from the turbine to the gears of the mechanism itself.
– Semi-dry dial meter with the reading mechanism completely immersed in the water and the rollers protected in a sealed capsule. Direct transmission from the turbine to the gears of the reading mechanism.
– Counter dry dial, with clockwork separated from the flow of ‘water. In this case, the transmission gears to watch take place via magnetic coupling.
