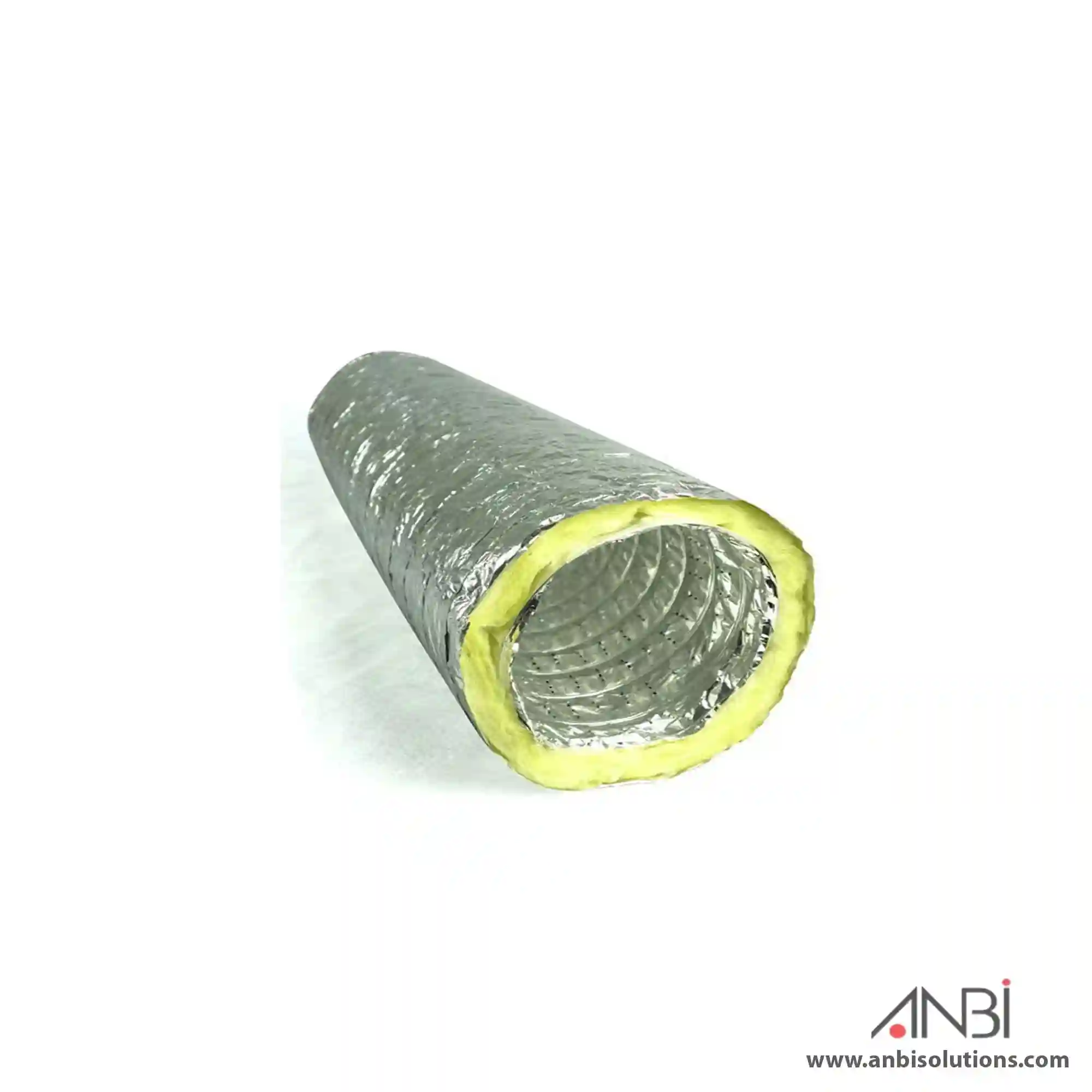

CRAYFLEX® Flexible Duct Insulated 25 Feet Length

Crayflex® 13APM is made of a triple lamination of aluminum foil, polyester, and metalized polyester film permanently bonded to a coated spring steel wire helix.

Thermal efficiency is provided by wrapping the exterior with a blanket of fiberglass insulation.

The strong outer insulation jacket/vapor barrier is made of metalized polyester film laminate.

MATERIAL: Made of a double laminate of tough clear polyester and a metalized polyester film and aluminum colored core permanently bonded to a spring steel wire helix. The strong outer insulation jacket/vapor barrier is made of metalized polyester film laminate.

DIMENSION: Flexible duct has 8” diameter and measurement of 76 x 26 x 26 in cm approx.

SUITABILITY: Ideal for all Air Conditioning / Ventilating systems including Hospitals, Hotels, Commercial and Office Buildings, and many other Industrial and Residential applications.

FEATURES: It has major benefits like tear puncture-resistant construction, low operating cost, No air leakage and compressed ducts reduce freight and storage costs.

QUICK INSTALLATION: Spring steel wire helix assures dimensional stability, resists mechanical abuse and provides more efficient air distribution. Meeting British Standards BS 476 ODP value zero and GWP value less than 5.
