ABOUT THE PRODUCT

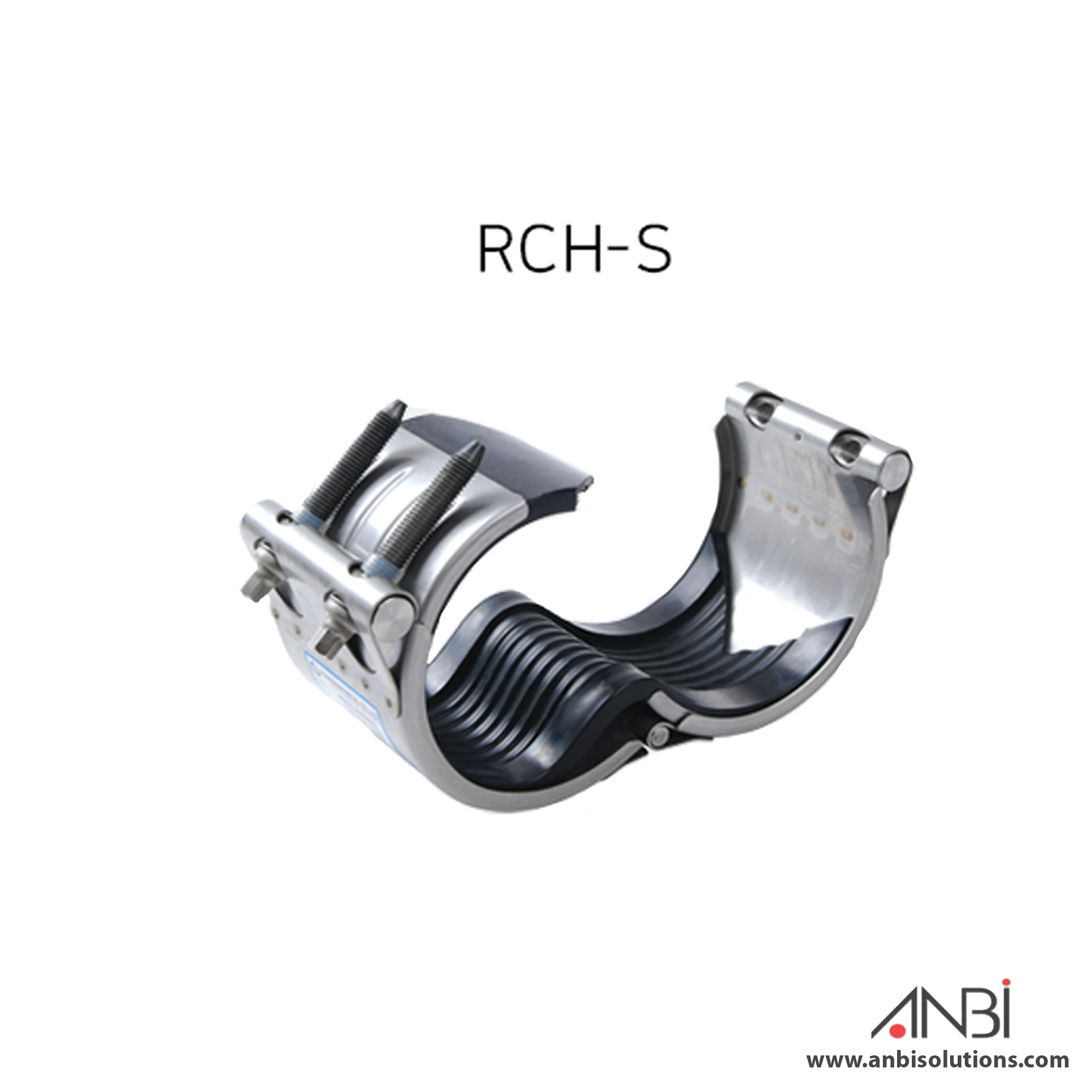

PIPE REPAIR CLAMP HINGES MODEL# RCH-S

Brand – Made in Korea

RCH-S(15A~3,000A) Available

PIPE O.D. specs are available for all sizes.

Size	O/D(mm)	Range	M	L	ℓ	U	W.P	W.T	P N.m(kgf/cm)
ND	D1	D2	M	L	ℓ	U	W.P	W.T	P N.m(kgf/cm)
15A 1.2″	21.3 21.7 22.0	O/D±0.3	M6 × 40L	57	32	46	18	0.2	3~5 (30~50)
20A 3/4″	26.9 26.7 27.2	O/D ±0.5	M6 × 40L	57	32	46	18	0.2	3~5 (30~50)
25A 1″	33.4 33.7 34.0	O/D ±0.6	M6 × 40L	57	32	51	18	0.25	3~5 (30~50)
32A 1-1/4″	42.2 42.4 42.7	O/D ±0.6	M8 × 50L	57	32	62	18	0.35	4~6 (40~60)
40A 1-1/2″	40.9 44.5 48.3 48.6	O/D ±1.0	M8 × 50L	57	32	66	18	0.35	4~6 (40~60)
50A 2″	54.0 57.0 60.3 60.5	O/D ±1.0	M10 × 65L	80	46	81	16	0.8	8~10 (80~100)
65A 2-1/2″	66.7 69.0 73.0 76.3	O/D ±1.0	M10 × 65L	80	46	100	16	0.86	8~10 (80~100)
80A 3″	79.8 84.0 88.9 89.1	O/D ±1.5	M12 × 80L	107	65	115	14	1.6	20~25 (200~250)
90A 3-1/2″	98.0 101.6	O/D ±1.5	M12 × 80L	107	65	144	14	1.7	20~25 (200~250)
100A 4″	106.3 108.0 114.3 118.0	O/D ±1.5	M12 × 80L	107	65	144	14	1.7	20~25 (200~250)
125A 5″	129.0 133.0 139.8 141.3	O/D ±1.5	M14 × 100L	117	71	175	12	2.9	30~35 (300~350)
150A 6″	154.0 159.0 165.2 168.3	O/D ±1.5	M14 × 100L	117	71	196	12	3.3	30~35 (300~350)
200A 8″	204.0 216.3 219.1	O/D ±2.0	M16 × 130L	155	80	260	10	6.7	40~50 (400~500)
250A 10″	254.0 267.4 273.1	O/D ±2.0	M16 × 130L	155	80	300	10	7.5	40~50 (400~500)
300A 12″	304.0 318.5 323.9 325.0	O/D ±2.0	M18 × 140L	155	80	350	10	9.0	60~80 (600~800)
350A 14″	340.0 355.6 377.0 368.0	O/D ±2.0	M18 × 140L	155	80	400	10	10.4	60~80 (600~800)
400A 16″	406.4 414.5 419.0 429.0	O/D ±2.5	M18 × 140L	155	94	450	10	11.0	80~100 (800~1000)
450A 18″	457.2 465.3 480.0	O/D ±2.5	M18 × 150L	155	94	500	10	12.8	80~100 (800~1000)
500A 20″	508.0 516.9 532.0	O/D ±3.0	M18 × 150L	155	94	550	10	13.6	100~120 (1000~1200)

Size	100mm, 15mm, 25 mm, 40 mm, 50 mm, 600mm
